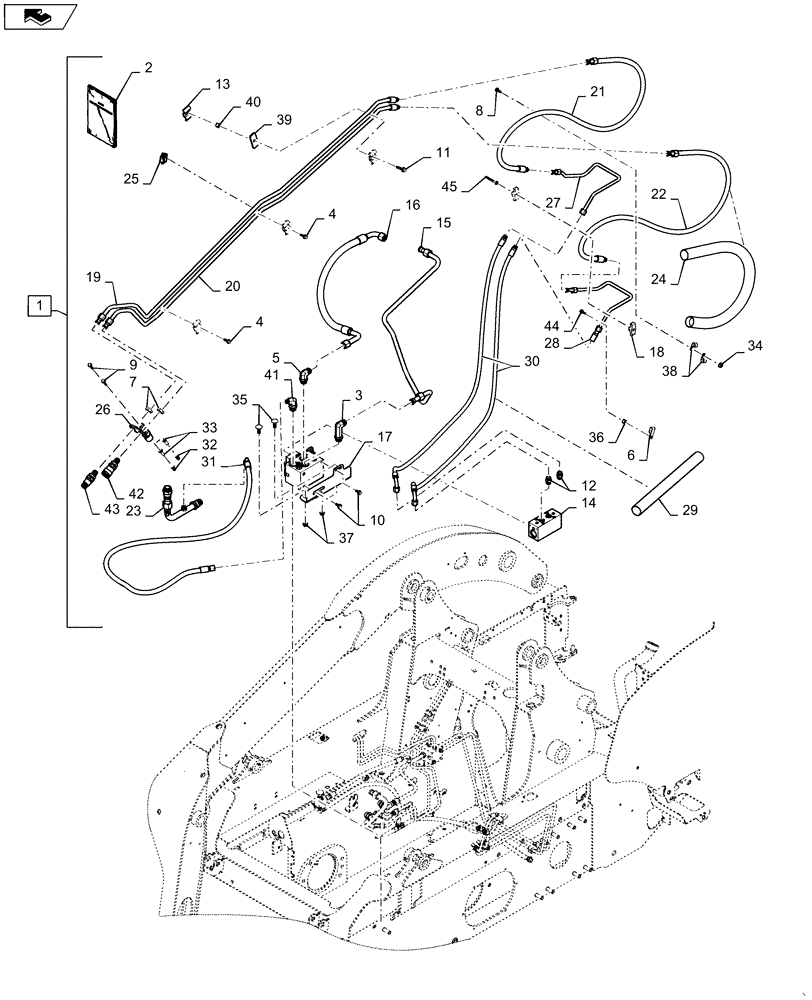

Запчасти Case IH SV250 (88.035.11) - DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY, VERTICAL BOOM (88) - ACCESSORIES

1

84593511

KIT

2nd Front Hydraulic Auxiliary, Large Vertical Incl 2 - 45

1шт.

2

84593489

INSTRUCTION

Installation

1шт.

3

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.

4

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

6

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

595460

BHD LOCK NUT,7/8" - 14

2шт.

8

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

11

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

12

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

13

84252828

CLAMP,65.2mm L

Butterfly Tube

3шт.

14

84292198

VALVE

E-H Secondary Auxiliary

1шт.

15

84299740

Assembly, 2nd Auxiliary Control

RIGID TUBE

1шт.

16

84321362

2nd Auxiliary Supply

HOSE ASSY.

1шт.

17

84322489

SUPPORT

2nd Auxiliary Valve

1шт.

18

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

19

84330199

Assembly, 2nd Auxiliary Arm, A

RIGID TUBE

1шт.

20

84330201

Assembly, 2nd Auxiliary Arm, B

RIGID TUBE

1шт.

21

84330252

HOSE ASSY.,12.7mm ID x 1929mm L, SAE 100R17

2nd Auxiliary, A

1шт.

22

84330253

HOSE ASSY.,12.7mm ID x 1879mm L, SAE 100R17

2nd Auxiliary, B

1шт.

23

84332288

RIGID TUBE

2nd Auxiliary Valve, Return

1шт.

24

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

25

84392527

SWITCH

Rocker, Auxiliary Electrical

1шт.

26

84474235

Auxiliary Coupler

BRACKET

1шт.

27

84474270

Assembly, 2nd Auxiliary, A

HYD TUBE

1шт.

28

84474272

Assembly, 2nd Auxiliary, B

HYD TUBE

1шт.

29

84474383

HOSE PROTECTION,46mm ID x 1900mm L

Guard

1шт.

30

84474384

HOSE ASSY.,9.53mm ID x 2070mm L, SAE 100R17

2nd Auxiliary

2шт.

31

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

2nd Auxiliary, Return

1шт.

32

84531322

RIVET,12.7mm OD x 21.5mm L

2шт.

33

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

34

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

35

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

36

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

37

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

38

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

39

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

40

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

1шт.

41

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

42

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

43

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

44

87752075

SCREW,HWH, M8 x 1.25 x 25mm

1шт.

45

D120679

CLAMP,Tube, 1/2"

1шт.
