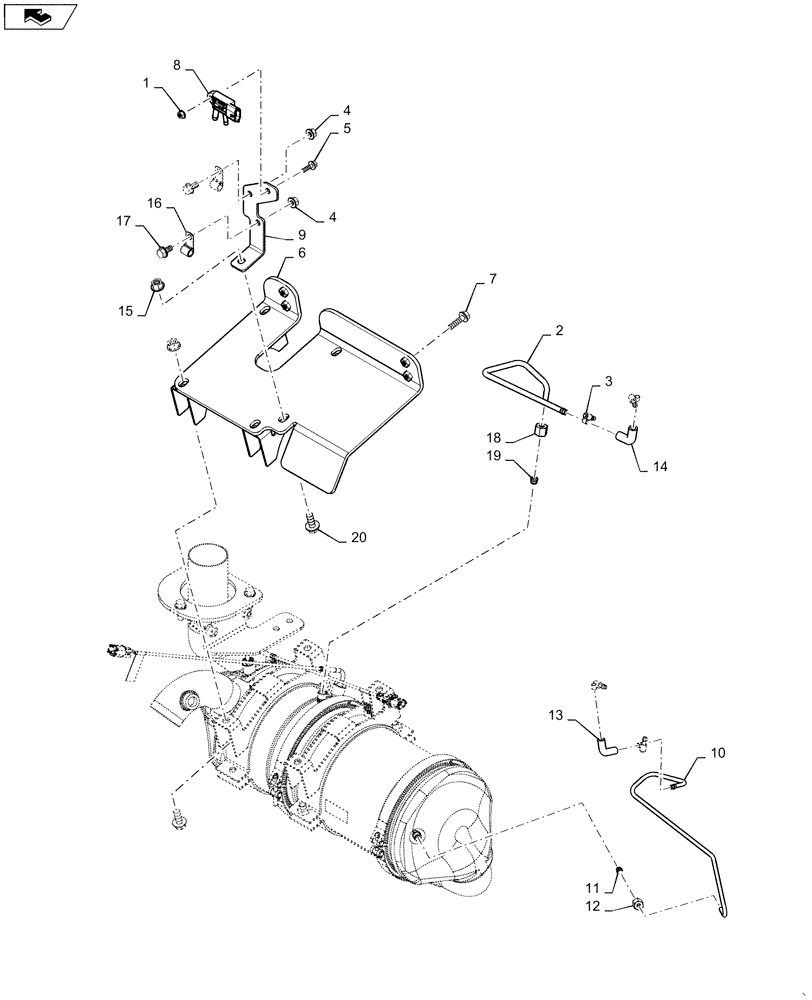

Запчасти Case IH SV250 (10.202.AD[02]) - AIR FILTER, ELECTRONIC CONTROLS (10) - ENGINE

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

2

84426108

Delta

TUBE

1шт.

3

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

6

84551142

DPF Mounting

ANGLE

1шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

8

84286249

SENSOR

DPF Delta Pressure

1шт.

9

84426487

Delta Sensor

BRACKET

1шт.

10

84558084

Delta

TUBE

1шт.

11

3138533R1

SLEEVE,Cutting Ring, 6mm ID x 9mm OD

Cutting Ring

1шт.

12

87774044

NUT,24 Degree, L6 Coupling, M12 x 1.5

Coupling

1шт.

13

84492738

Delta

HOSE

1шт.

14

84426109

Delta

HOSE

1шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

5шт.

16

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

18

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

1шт.

19

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

Cutting

1шт.

20

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.
