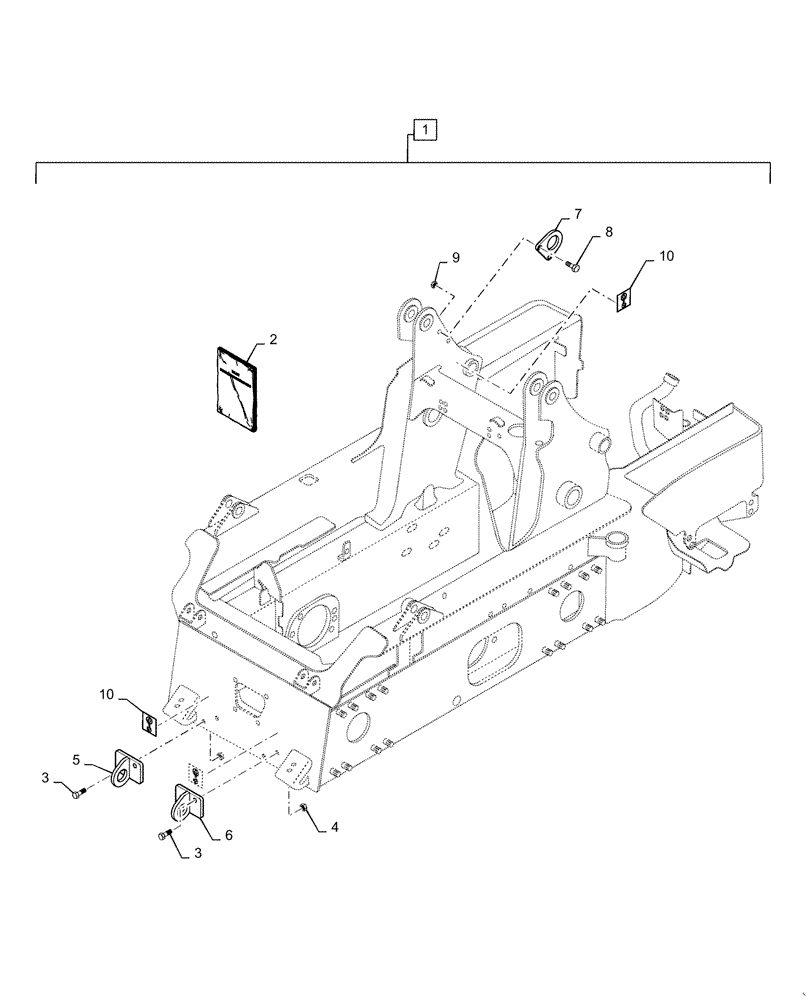

Запчасти Case IH SV250 (88.088.01) - DIA KIT, 4 POINT LIFT HOOK (88) - ACCESSORIES

1

84405091

SERVICE KIT

4 Point Lift Hook, Incl 2 - 10

1шт.

2

84405094

Sheet

INSTRUCTION

1шт.

3

87698849

BOLT,M16 x 50mm, Cl 10.9

4шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

5

84403433

RH, Lift

BRACKET

1шт.

6

84403431

LH, Lift

BRACKET

1шт.

7

84374556

Lift

BRACKET

2шт.

8

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

9

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

4шт.

10

139729A1

DECAL

Lift

4шт.
