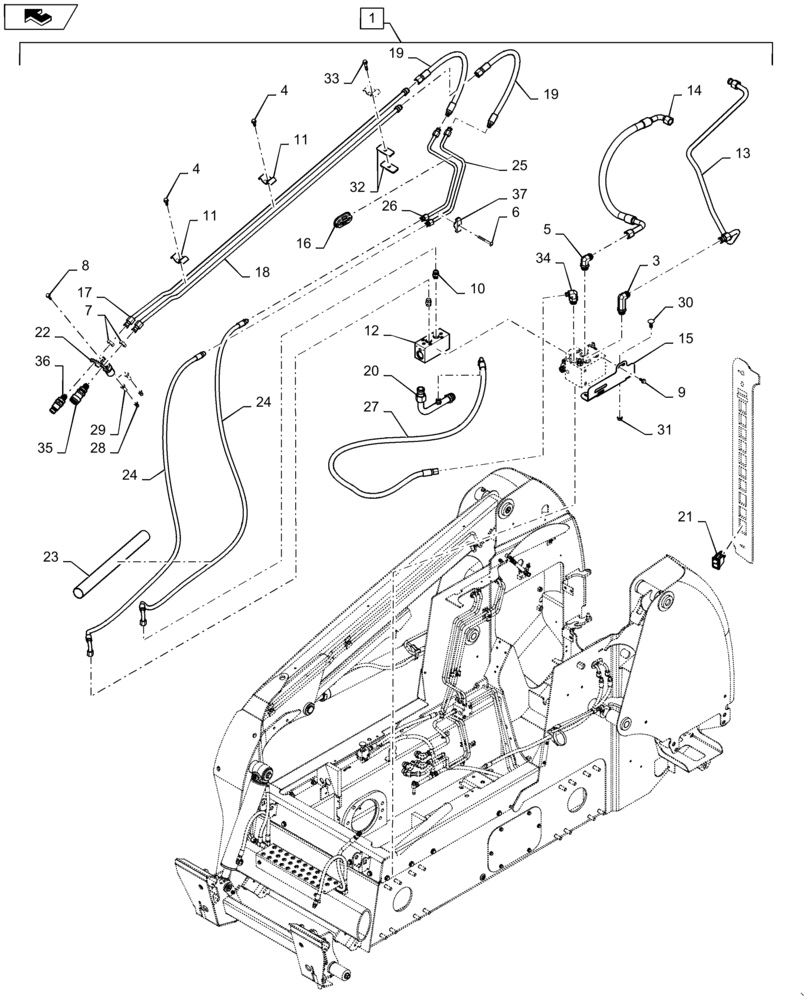

Запчасти Case IH SV250 (88.035.12) - DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY, RADIAL BOOM (88) - ACCESSORIES

1

47483678

KIT

2nd Front Hydraulic Auxiliary, Incl 2 - 39

1шт.

2

47483686

INSTRUCTION

Sheet, Installation

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

6

595460

BHD LOCK NUT,7/8" - 14

2шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

47482778

TUBE

1шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

11

84252828

CLAMP,65.2mm L

Butterfly Tube

3шт.

12

84292198

VALVE

E-H Secondary Auxiliary

1шт.

13

84321362

2nd Auxiliary Supply

HOSE ASSY.

1шт.

14

84322489

SUPPORT

2nd Auxiliary Valve

1шт.

15

84326108

Hydraulic

SUPPORT TUBE

2шт.

16

84330208

Assembly, 2nd Auxiliary Arm A - 1

RIGID TUBE

1шт.

17

84330210

Assembly, 2nd Auxiliary Arm B - 1

RIGID TUBE

1шт.

18

84330259

2nd Auxiliary Arm A

HOSE ASSY.,12.7mm ID x 705mm L, SAE 100R17

2шт.

19

84332288

RIGID TUBE

Assembly, 2nd Auxiliary Valve Return

1шт.

20

84392527

SWITCH

Rocker, Auxiliary Electrical, Momentary On - Off - Momentary

1шт.

21

84474235

Auxiliary Coupler

BRACKET

1шт.

22

84474383

HOSE PROTECTION,46mm ID x 1900mm L

Guard

1шт.

23

84474384

HOSE ASSY.,9.53mm ID x 2070mm L, SAE 100R17

Hydraulic, 2nd Auxiliary

2шт.

24

84474478

Assembly, 2nd Auxiliary B

HYD TUBE

1шт.

25

84474480

Assembly, 2nd Auxiliary A

HYD TUBE

1шт.

26

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

2nd Auxiliary Return

1шт.

27

84531322

Riveted

RIVET,12.7mm OD x 21.5mm L

2шт.

28

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

31

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

2шт.

32

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

33

87058492

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 Fem Sw

1шт.

34

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

35

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

36

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

37

D120679

CLAMP,Tube, 1/2"

Tube

1шт.

38

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

2шт.

39

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.
