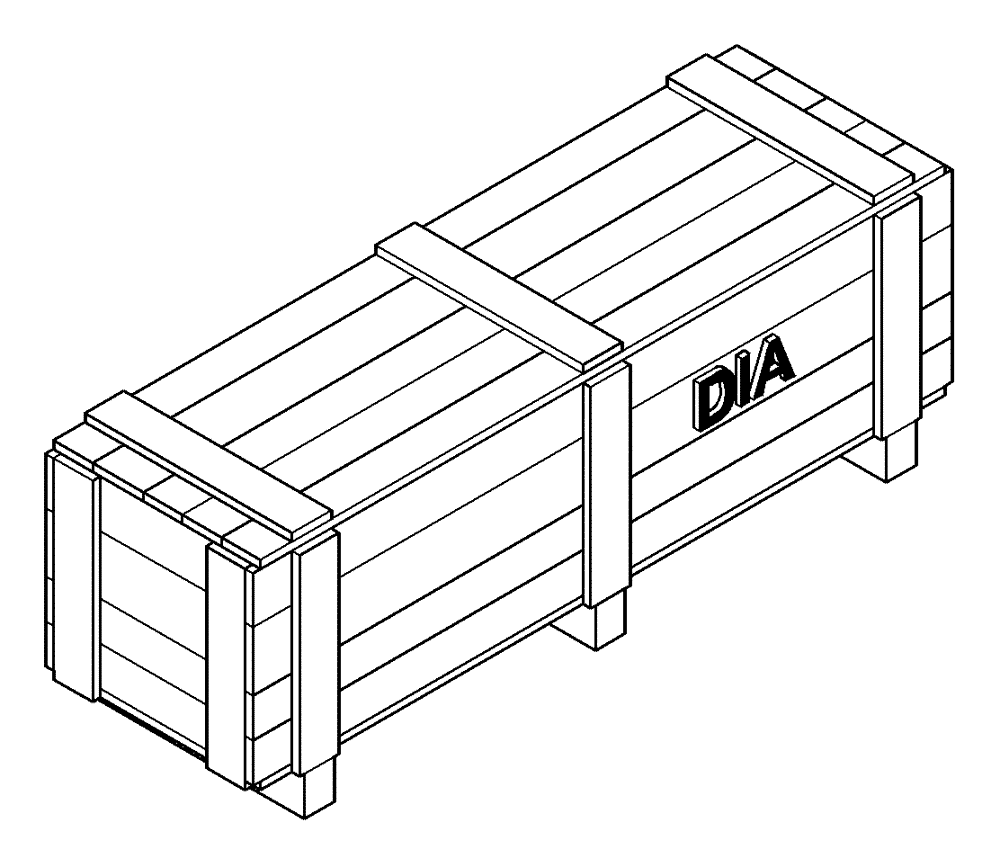

Запчасти Case IH SV250 (88.035.09) - DIA KIT, HYDRAULIC COUPLER, VERTICAL BOOM (88) - ACCESSORIES

1

47435668

Hydraulic Coupler, Incl 2 - 61

SERVICE KIT

1шт.

2

47435669

Sheet

INSTRUCTION

1шт.

3

84256406

HYDRAULIC VALVE

Valve

1шт.

4

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

5

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

1шт.

6

84546406

HYD TUBE

Coupler

1шт.

7

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

9

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

10

84259682

Option

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

11

84251346

SWITCH

Hydraulic Coupler

1шт.

12

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

12 - 08 - 12

1шт.

13

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

14

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

15

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Tube

2шт.

16

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

21шт.

17

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

18

87752074

SCREW,HWH, M8 x 1.25 x 16mm

1шт.

19

84292314

Hydraulic Coupler Drain

HOSE,12.7mm ID x 460mm L

1шт.

20

84555943

HYD TUBE

Chassis

1шт.

21

84555945

HYD TUBE

Coupler

1шт.

22

84555947

HYDRAULIC HOSE,6.35mm ID x 565mm L, SAE 100R17

Coupler

2шт.

23

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Coupler

2шт.

24

47418981

CHECK VALVE

Step

1шт.

25

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

26

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

2шт.

27

84387739

Position Indicator

ROD

2шт.

28

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

29

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

30

47418981

CHECK VALVE

Valve

1шт.

31

47426340

HYDRAULIC HOSE,6.35mm ID x 456mm L, SAE 100R16

Coupler

1шт.

32

47426339

HYDRAULIC HOSE,6.35mm ID x 240mm L, SAE 100R16

Coupler

1шт.

33

47426341

HYDRAULIC HOSE,6.35mm ID x 469mm L, SAE 100R17

Coupler

1шт.

34

47426342

HYDRAULIC HOSE,6.35mm ID x 255mm L, SAE 100R17

Coupler

1шт.

35

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

37

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

38

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

39

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

40

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

41

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

42

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

43

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

44

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

45

84551177

HYD TUBE

Hydraulic Coupler

1шт.

46

84555936

HYD TUBE

Hydraulic Coupler

1шт.

47

84281694

HOSE ASSY.,6.35mm ID x 1845mm L, SAE 100R17

Hydraulic Coupler

2шт.

48

605025

CLAMP,3/8", Coated, 3/8" Bolt

3/8" Bolt

1шт.

49

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

50

47426343

HOSE ASSY.,6.35mm ID x 786mm L, SAE 100R17

Step To Coupler

2шт.

51

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

52

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

53

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

54

47401099

HOSE,36.1mm ID x 825mm L

Hydraulic Hose

1шт.

55

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

56

84201227

Coupler Drain

HOSE,12.7mm ID x 615mm L

1шт.

57

84555950

HYD TUBE

Coupler

1шт.

58

84555952

HYD TUBE

Coupler

1шт.

59

84284644

HOSE ASSY.,6.35mm ID x 1680mm L, SAE 100R17

Hydraulic Coupler

2шт.

60

84254056

HOSE CLAMP,69.2mm L

Butterfly

1шт.

61

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.
