Запчасти Case IH SV250 (88.035.08) - DIA KIT, BOOM SELF LEVEL, VERTICAL BOOM (88) - ACCESSORIES

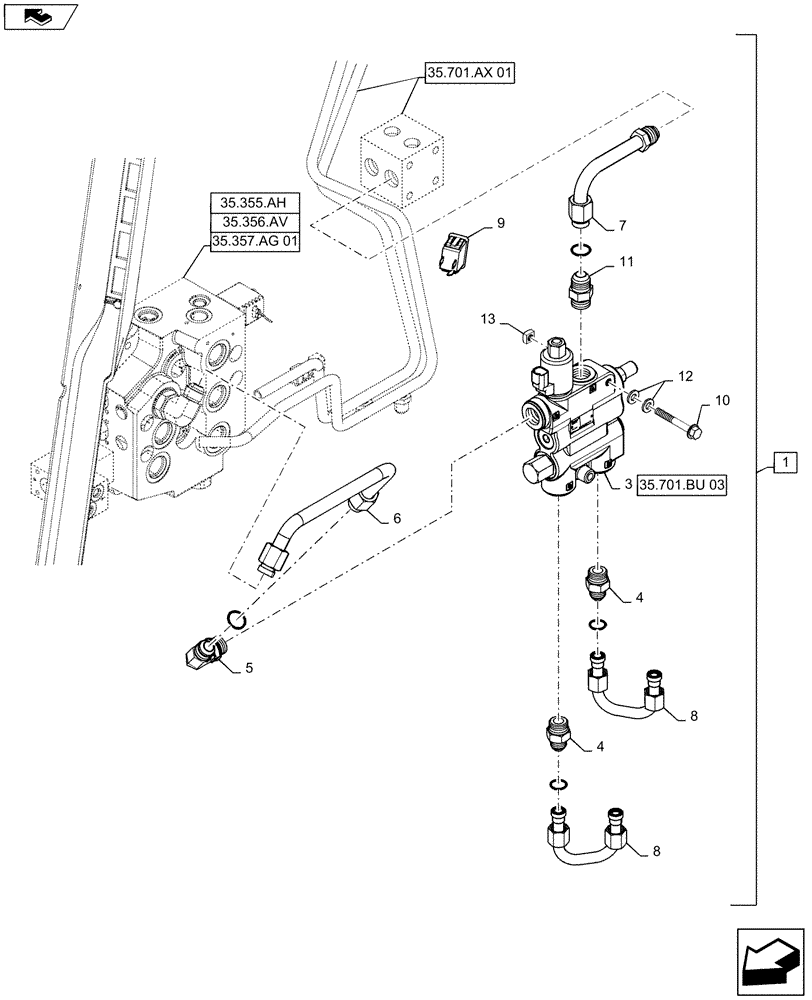

Схема запчастей Case IH SV250 - (88.035.08) - DIA KIT, BOOM SELF LEVEL, VERTICAL BOOM (88) - ACCESSORIES
1
3
11
9
12
7
5
4
8
35.355.ah
home
4
6
35.701.bu 03
35.357.ag 01
10
8
35.701.ax 01
35.356.av
13

Артикул

Название

Примечание

Количество

1

84305862

Self - Level, Incl 2 - 13

KIT

1шт.

2

84366429

Installation, Not Shown

INSTRUCTION

1шт.

3

84326482

VALVE,60 Self Level

Self Level

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

6

84186140

RIGID TUBE

Lower, Loader Valve to Self Level

1шт.

7

84258865

RIGID TUBE

Lower, Self level to Manifold

1шт.

8

84258866

RIGID TUBE

Self level Valve to Tip

2шт.

9

84271904

SWITCH

Rocker, Self Leveling

1шт.

10

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

11

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

1шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

13

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

Выбрано товаров: 13
