(55.512.CL[05]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECHANICAL CONTROLS

Запчасти Case IH SV250 (55.512.CL[05]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS

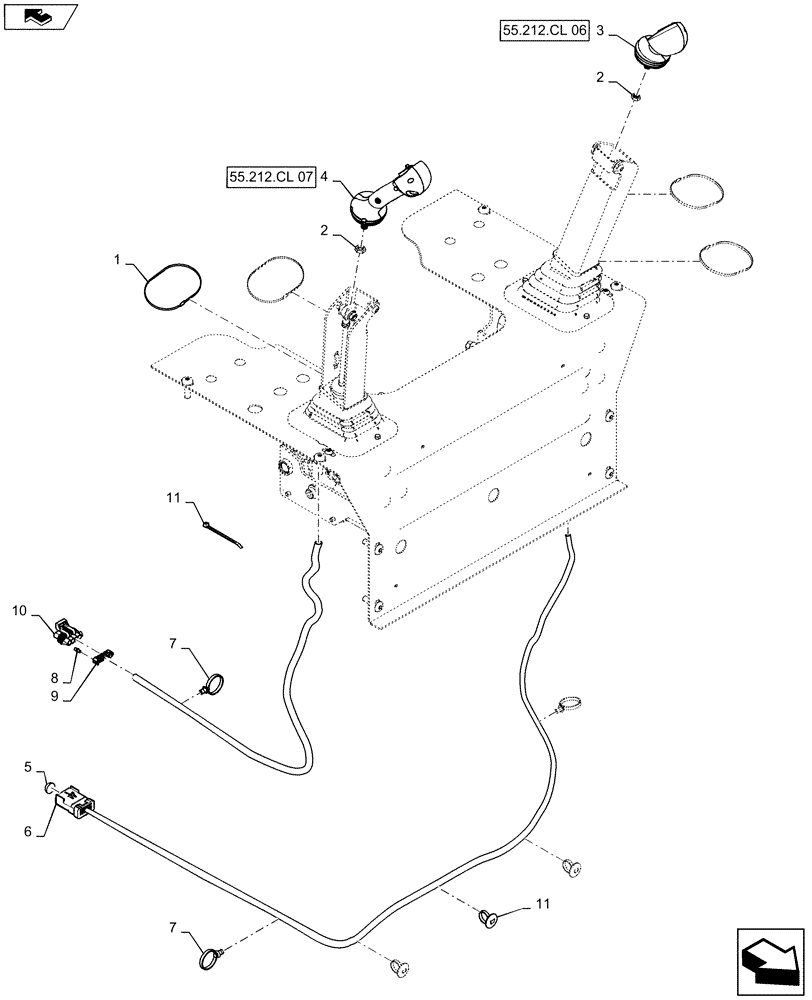

Схема запчастей Case IH SV250 - (55.512.CL[05]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS
55.212.cl 06
6
10
8
7
5
3
7
11
2
2
4
11
9
1
55.212.cl 07
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201270

LH, Level 100, Contains Only Horn Switch

HANDLE GRIP

1шт.

4

84201273

RH, Level 100, Contains Park Brake Switch And Proportional Auxiliary Hydraulic Switch

HANDLE GRIP

1шт.

5

84279937

PLUG,Apex, 2.80mm

Used On RH Grip

5шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

Used On RH Grip

1шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, Used On LH Grip

2шт.

9

87689643

CLIP,4.8mm ID

Wedge, Used On LH Grip

1шт.

10

87697724

ELEC CONNECTOR,Female, 4 Cavities

Used On LH Grip

1шт.

11

378884A2

STRAP,254mm L

Nylon

3шт.
