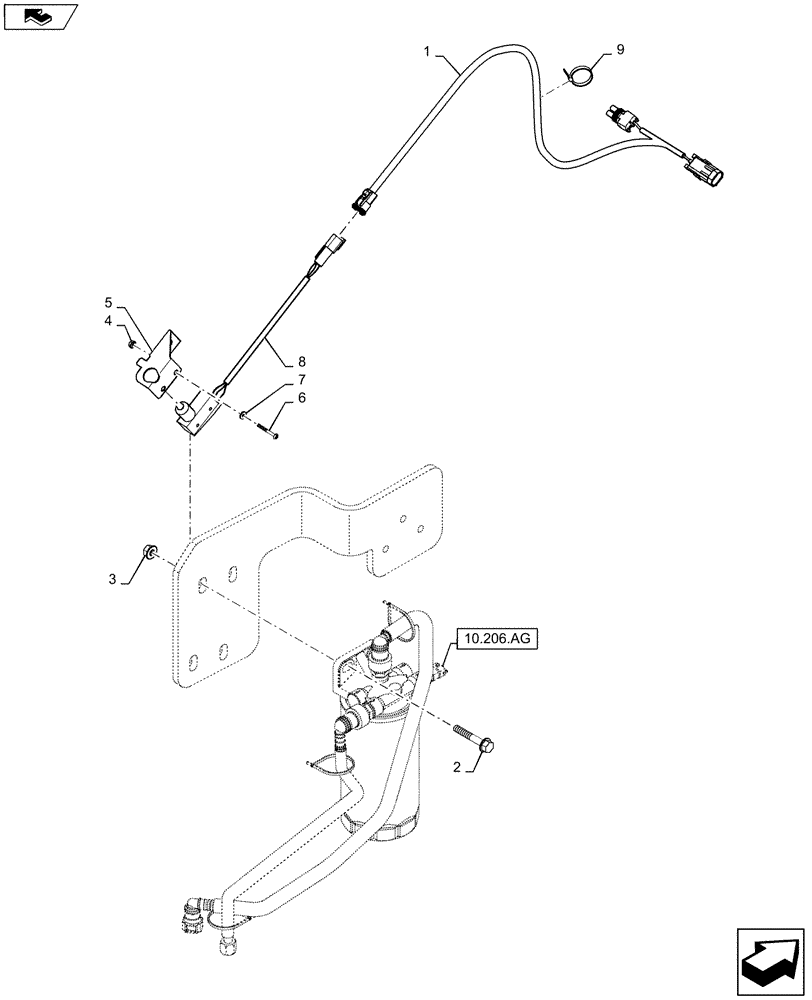

Запчасти Case IH SV250 (55.408.BC) - FUEL TRANSFER PUMP, SWITCH (7-JUN-2013 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

84582667

WIRE HARNESS

1шт.

2

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

280859

NUT,Keps, #6-32

2шт.

5

84586130

BRACKET

1шт.

6

9635014

SCREW,Cross Pan HD, #6 x 1-1/4"

2шт.

7

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

8

87051110

DOOR SWITCH

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

Switch Mounting

1шт.
