(55.404.AL[02]) - FRONT LIGHT HEAVY DUTY

Запчасти Case IH SV250 (55.404.AL[02]) - FRONT LIGHT HEAVY DUTY (55) - ELECTRICAL SYSTEMS

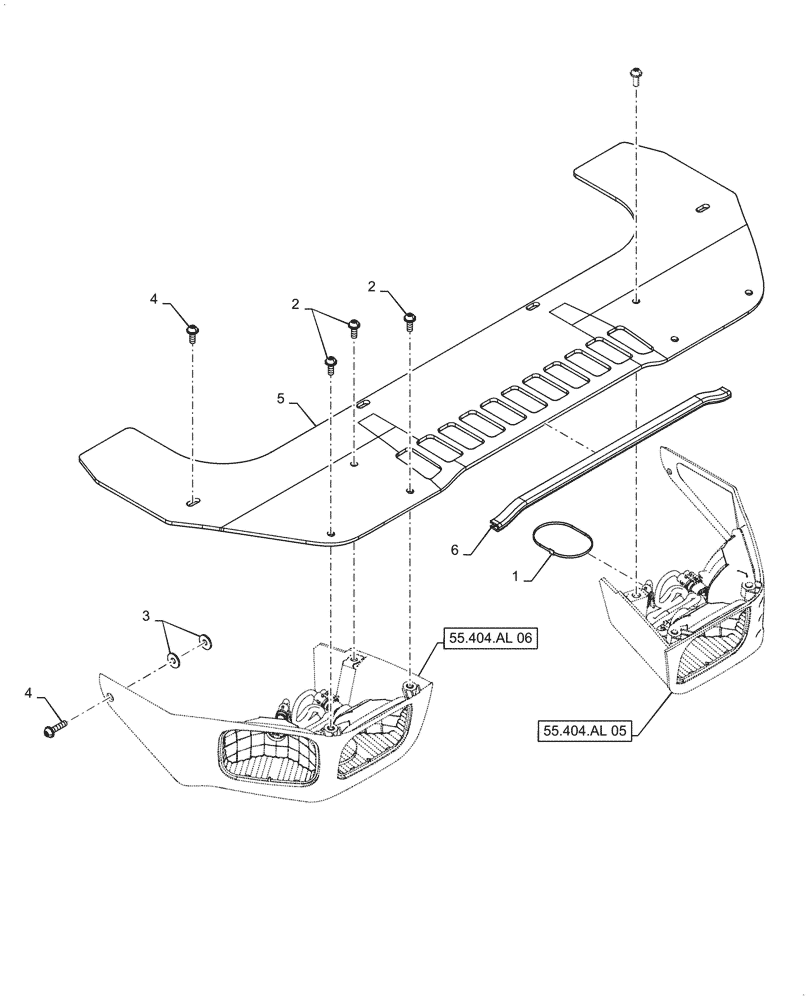

Схема запчастей Case IH SV250 - (55.404.AL[02]) - FRONT LIGHT HEAVY DUTY (55) - ELECTRICAL SYSTEMS
55.404.al 06
2
6
5
4
2
3
1
4
55.404.al 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

2

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

3

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

4

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

6шт.

5

84338448

BRACKET, SUPPORTING

Brow

1шт.

6

84353803

TRIM,30.48m Bulk

376mm L Needed

1шт.

Выбрано товаров: 6
