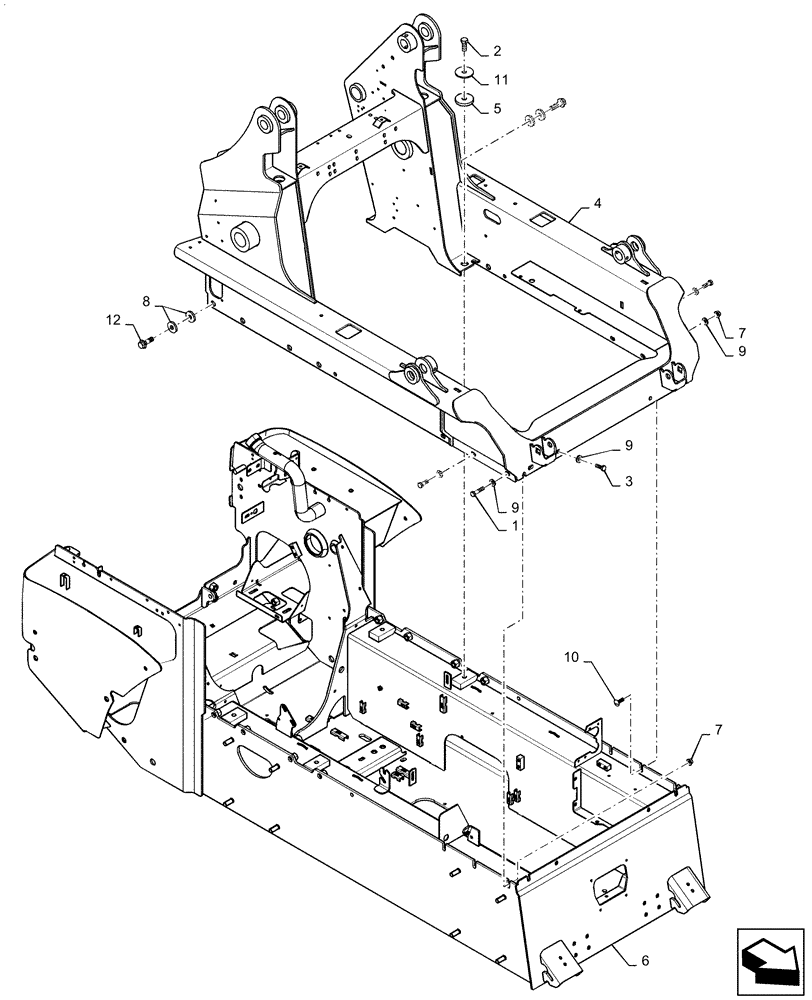

1
337476
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
1шт.
2
374835
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
4шт.
3
9824642
BOLT,M12 x 1.75 x 42.68mm, Cl 10.9
Rear Mount
8шт.
4
84532255
Upper Chassis, Vertical Boom
FRAME
1шт.
4
47460809
Upper Chassis, Vertical Boom, Start Year: 28-JAN-14
FRAME
1шт.
5
84298254
PLATE
Rear Mount
1шт.
6
NS
NOT SERVICED
The Lower Chassis Is Not Offered As A Service Part, Please Contact Your Local PSSM If Lower Chassis Is Needed
1шт.
7
86512497
FLANGE NUT,M12 x 1.75, Cl 10
10шт.
8
86592702
WASHER,17mm ID x 45mm OD x 6mm Thk
16шт.
9
86625256
WASHER,13.3mm ID x 28.5mm OD x 4mm Thk
10шт.
10
87035385
CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd
1шт.
11
87687021
WASHER,17.3mm ID x 70mm OD x 4.5mm Thk
4шт.
12
87698849
BOLT,M16 x 50mm, Cl 10.9
8шт.
