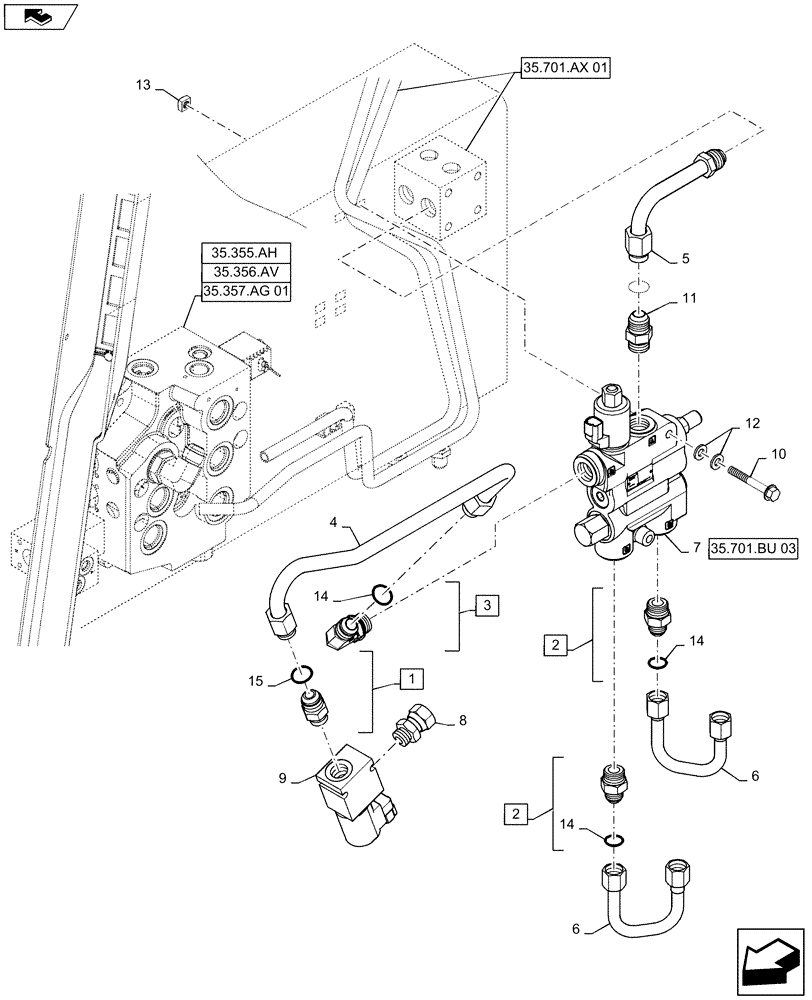

Запчасти Case IH SV250 (35.701.BU[02]) - SELF LEVELING MECH, SV250, AFTER MAY 1, 2012 (35) - HYDRAULIC SYSTEMS

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 15

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 14

2шт.

3

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 14

1шт.

4

47383482

TUBE

Loader Valve To Self Leveling Valve

1шт.

5

84258865

RIGID TUBE

Self Leveling Valve To Manifold

1шт.

6

84258866

RIGID TUBE

Self Leveling Valve To Loader Tip Tubes

2шт.

7

84326482

VALVE,60 Self Level

1шт.

8

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

2шт.

9

84593149

VALVE

Rod Lock

1шт.

10

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

11

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

1шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

13

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
