(35.701.BU[01]) - NO SELF LEVELING MECH

Запчасти Case IH SV250 (35.701.BU[01]) - NO SELF LEVELING MECH (35) - HYDRAULIC SYSTEMS

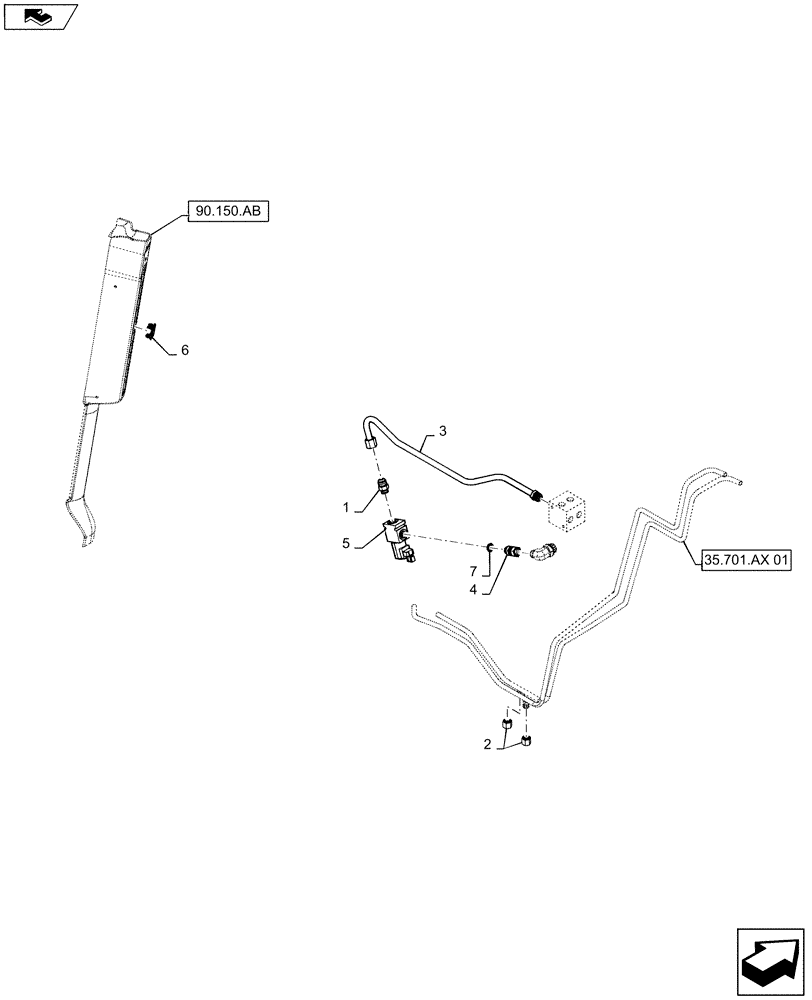

Схема запчастей Case IH SV250 - (35.701.BU[01]) - NO SELF LEVELING MECH (35) - HYDRAULIC SYSTEMS
2
5
3
7
90.150.ab
1
35.701.ax 01
4
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

262159

CAP,3/4" - 16 Fem JIC

Used On Loader Tip Tubes

2шт.

3

47383485

Loader Valve To Manifold

TUBE

1шт.

4

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

1шт.

5

84593149

VALVE

1шт.

6

126844A1

PLUG,1.427” x .62” , Plastic

Located In LH A-Post In Cab

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
