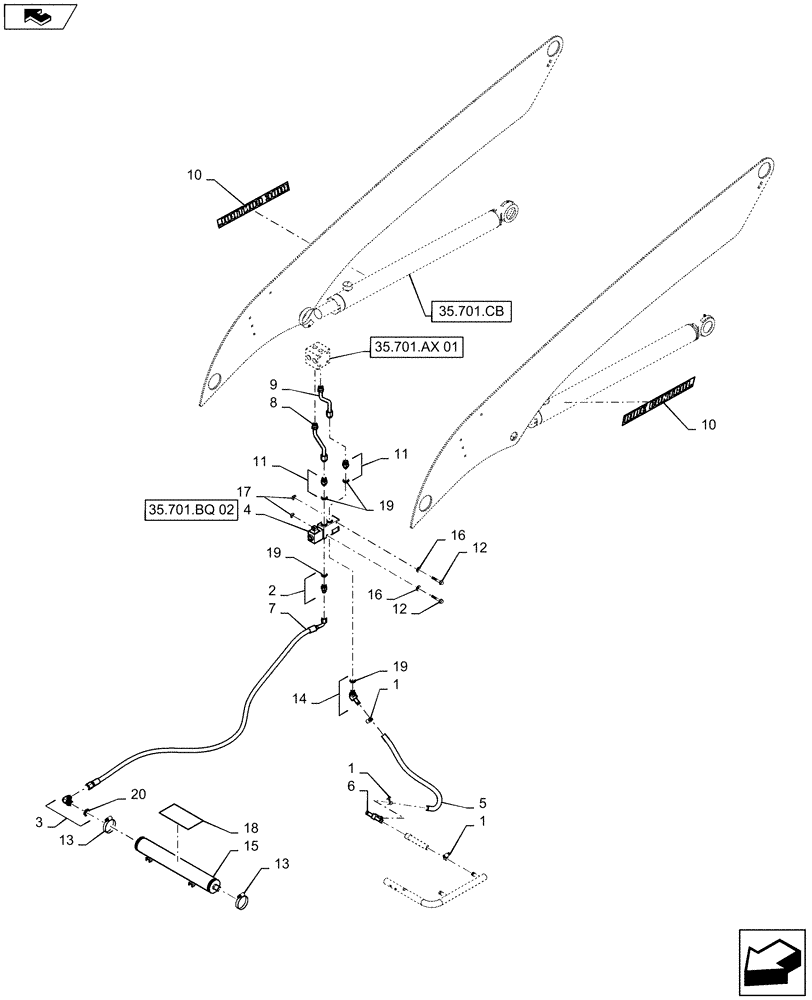

Запчасти Case IH SV250 (35.701.BR) - RIDE CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 19

1шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 20

1шт.

4

84256404

Ride Control

HYDRAULIC VALVE

1шт.

See Figure 35.701.BQ(02) For Service Parts

1шт.

5

84259548

Ride Control Oil Return

HOSE,12.7mm ID x 560mm L

1шт.

6

84259682

Option, Connects To Return

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

7

84331280

HOSE,9.53mm ID x 1550mm L, SAE 100R17

Ride Control Valve To Accumulator

1шт.

8

84375899

RIGID TUBE

Ride Control Valve To Manifold

1шт.

9

84375901

RIGID TUBE

Ride Control Valve To Manifold

1шт.

10

84493112

Ride Control

DECAL

2шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 19

2шт.

12

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

13

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

14

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 19

1шт.

15

87403797

ACCUMULATOR,275 Bar, 0.75L

Ride Control

1шт.

16

87655042

8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8.8, ZND

2шт.

18

328903A1

DECAL

Warning, Pressurized System

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

4шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

1шт.
