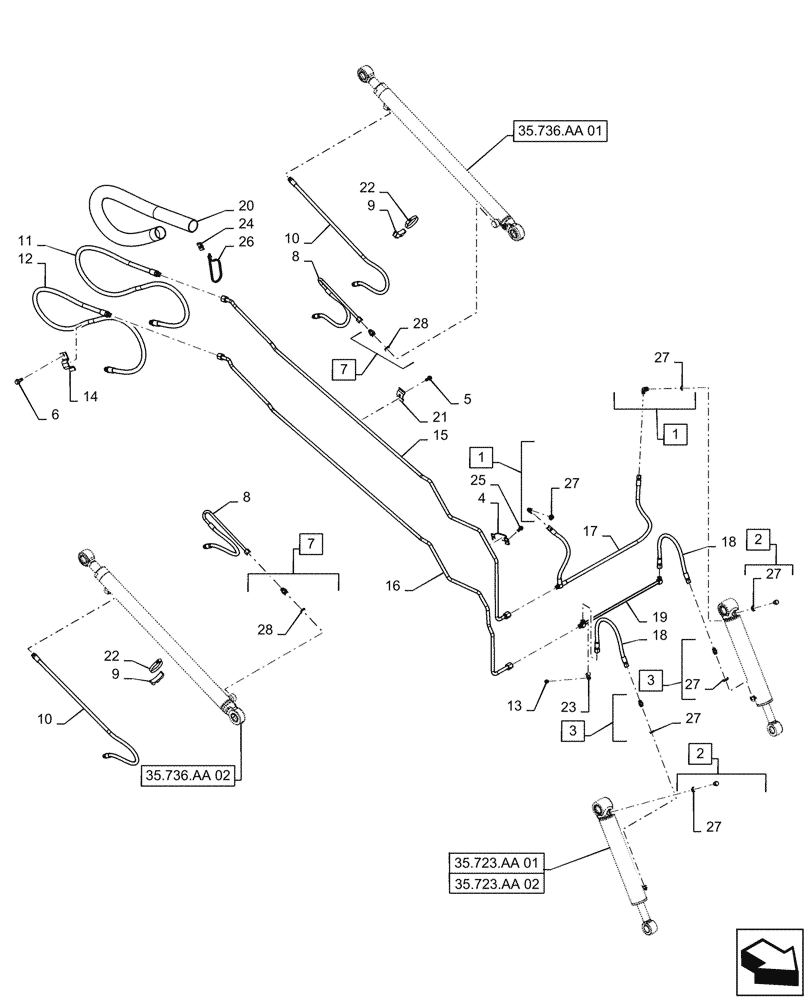

Запчасти Case IH SV250 (35.701.AX[03]) - LOADER HYDRAULICS (30-JUL-2013 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 27

2шт.

2

76349

PLUG,9/16" - 18 ORB

Incl 27

2шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 27

2шт.

4

184064

CLIP,12.7mm ID, 8.73mm Bolt Hole, J Type

Tube

2шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

7

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 28

2шт.

8

84255975

Lift Cylinder Base

TUBE

2шт.

9

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

10

84281674

HYDRAULIC HOSE,9.53mm ID x 1130mm L, SAE 100R17

Lift Cylinder Rod

2шт.

11

84281692

Tip Cylinder

HYDRAULIC HOSE,12.7mm ID x 1825mm L, SAE 100R17

1шт.

12

84281693

Tip Cylinder

HYDRAULIC HOSE,12.7mm ID x 1850mm L, SAE 100R16

1шт.

13

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

14

84318865

Double

HOSE CLAMP

1шт.

15

84346623

Tip Cylinder

HYD TUBE

1шт.

16

84346625

Tip Cylinder

HYD TUBE

1шт.

17

84346682

Tip Cylinder Base

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

1шт.

18

84346755

Tip Cylinder

HOSE ASSY.,9.53mm ID x 568mm L, SAE 100R16

2шт.

19

84346785

Tip Crossover

HYD TUBE

1шт.

20

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

21

86501706

CLAMP

Double Tube

3шт.

22

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

23

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

24

86625071

SPRING NUT,M10 x 1.5

1шт.

25

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 1 - 3

6шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 7

2шт.
