Запчасти Case IH SV250 (35.701.AX[01]) - LOADER VALVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS

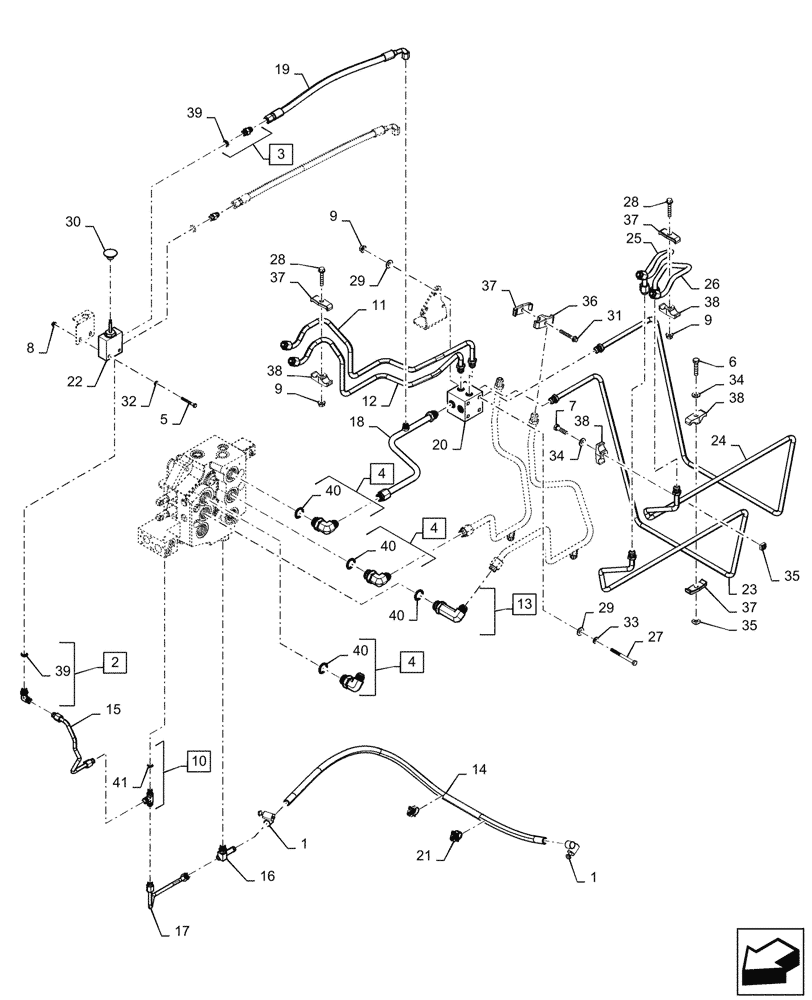

Схема запчастей Case IH SV250 - (35.701.AX[01]) - LOADER VALVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS
37
4
23
31
39
36
40
3
40
41
40
29
8
37
13
16
21
9
20
12
10
35
9
27
7
34
1
37
18
5
34
40
11
28
24
33
26
15
30
6
38
17
2
38
22
38
32
35
38
39
19
29
14
37
9
4
25
28
4
1

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 39, Years: -30-JAN-17

1шт.

2

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 39, Start Year: 31-JAN-17

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 39

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 40

4шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

3шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

47451735

TEE,3/8” JIC x 1/4” ORB x 3/8” JIC

Incl 41

1шт.

11

47605467

TUBE

Manifold to Right Arm, Lower

1шт.

12

47605469

TUBE

Manifold to Right Arm. Lift

1шт.

13

47647779

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 40

1шт.

14

47735108

HOSE,12.7mm ID X 1060mm L

1шт.

15

47976179

PRV Drain

HYD TUBE

1шт.

16

47978013

FITTING

Loader Drain

1шт.

17

47978377

HYD TUBE

Loader Valve Drain

1шт.

18

84378484

Loader Valve to Manifold , Lift

RIGID TUBE

1шт.

19

84201224

Override, Years: -30-JAN-17

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

19

48093517

Override, Start Year: 31-JAN-17

HYDRAULIC HOSE,6.3mm ID x 535mm L, SAE 100R16

1шт.

20

84258823

HYDRAULIC MANIFOLD

Block

1шт.

21

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

22

84294239

Boom Override

VALVE

1шт.

23

84377535

TUBE

Manifold to Lift Arm, Lift

1шт.

24

84377537

TUBE

Manifold to Lift Arm, Lower

1шт.

25

84377541

TUBE

Left Fender, Lift

1шт.

26

84377543

TUBE

Left Fender, Lower

1шт.

27

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

28

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

29

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

30

87522292

KNOB

Override Valve

1шт.

31

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

32

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

33

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

34

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

35

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

36

D120613

CLAMP,20mm ID

1шт.

37

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

38

D120679

CLAMP,Tube, 1/2"

4шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

41

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 43
