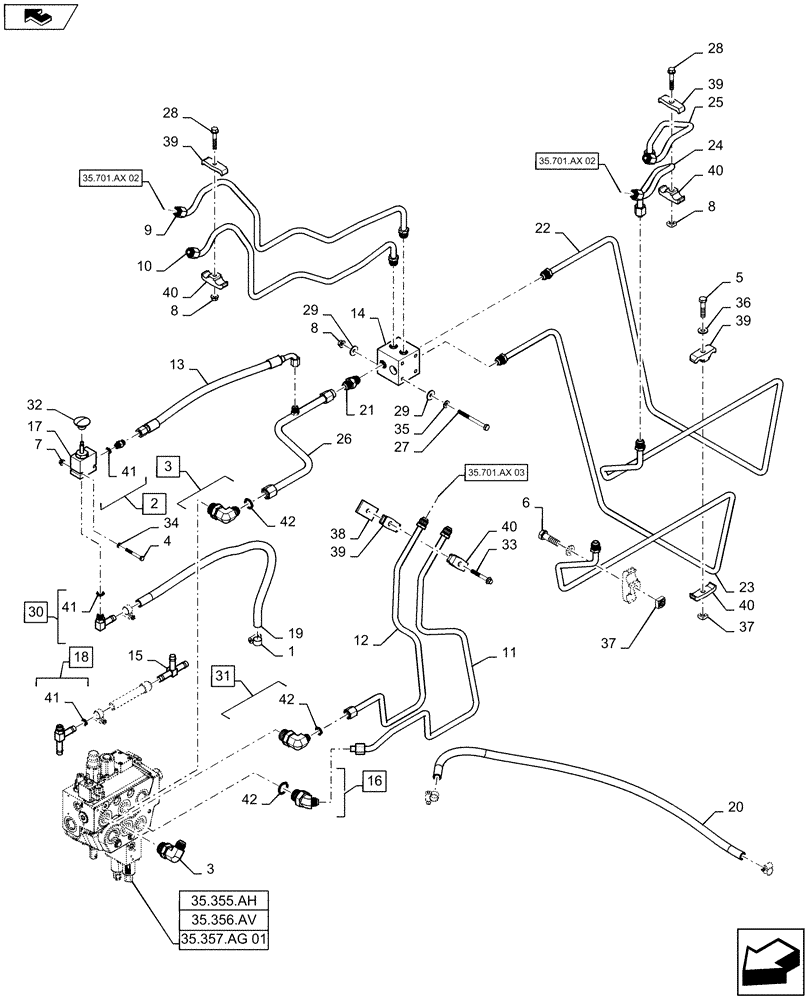

Запчасти Case IH SV250 (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 41

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 42

2шт.

4

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

84178521

Boom Lower, Manifold To RH Arm

TUBE

1шт.

10

84178523

Boom Lift, Manifold To RH Arm

TUBE

1шт.

11

84181023

Bucket Tip, Loader Valve To RH Arm, Years: -14-MAY-13

TUBE

1шт.

11

47503044

Bucket Tip, Loader Valve To RH Arm, Start Year: 15-MAY-13

TUBE

1шт.

12

84181026

Bucket Tip, Loader Valve To RH Arm, Years: -14-MAY-13

TUBE

1шт.

12

47503041

Bucket Tip, Loader Valve To RH Arm, Start Year: 15-MAY-13

TUBE

1шт.

13

84201224

Boom Override

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

14

84258823

HYDRAULIC MANIFOLD

Main

1шт.

15

84259682

Auxiliary Drain

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

16

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

17

84294239

Boom Override

VALVE

1шт.

18

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

19

84299733

Boom Override Valve To Auxiliary Drain

HOSE,12.7mm ID x 660mm L

1шт.

20

84299735

Auxiliary Drain To Main Drain

HOSE,12.7mm ID x 915mm L

1шт.

21

84373458

Directional, 4.75mm

ORIFICE

1шт.

22

84377535

TUBE

Boom Lift, Manifold To LH Fender

1шт.

23

84377537

TUBE

Boom Lower, Manifold To LH Fender

1шт.

24

84377541

TUBE

Boom Lift, LH Fender To LH Arm

1шт.

25

84377543

TUBE

Boom Lower, LH Fender To LH Arm

1шт.

26

84378484

Boom Lift, Loader Valve To Manifolc

RIGID TUBE

1шт.

27

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

28

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

29

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

30

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 41

1шт.

31

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 42

1шт.

32

87522292

KNOB

Override Valve

1шт.

33

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

Clamp Top

1шт.

34

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

35

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

36

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

37

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

38

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp Top

1шт.

39

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

4шт.

40

D120679

CLAMP,Tube, 1/2"

5шт.

41

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

42

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
