(35.525.AA[05]) - AUXILIARY CASE DRAIN PLUMBING

Запчасти Case IH SV250 (35.525.AA[05]) - AUXILIARY CASE DRAIN PLUMBING (35) - HYDRAULIC SYSTEMS

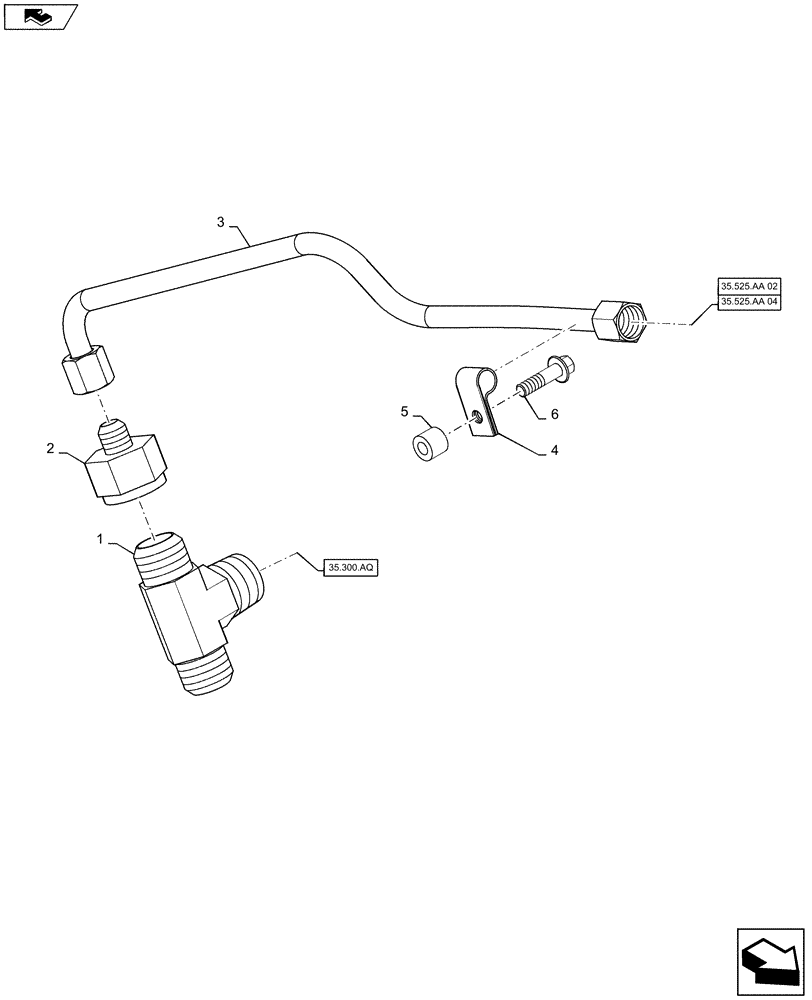

Схема запчастей Case IH SV250 - (35.525.AA[05]) - AUXILIARY CASE DRAIN PLUMBING (35) - HYDRAULIC SYSTEMS
35.525.aa 02
6
5
home
35.300.aq
3
2
35.525.aa 04
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

2

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

3

84403682

Case Drain

TUBE

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

6

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

Выбрано товаров: 6
