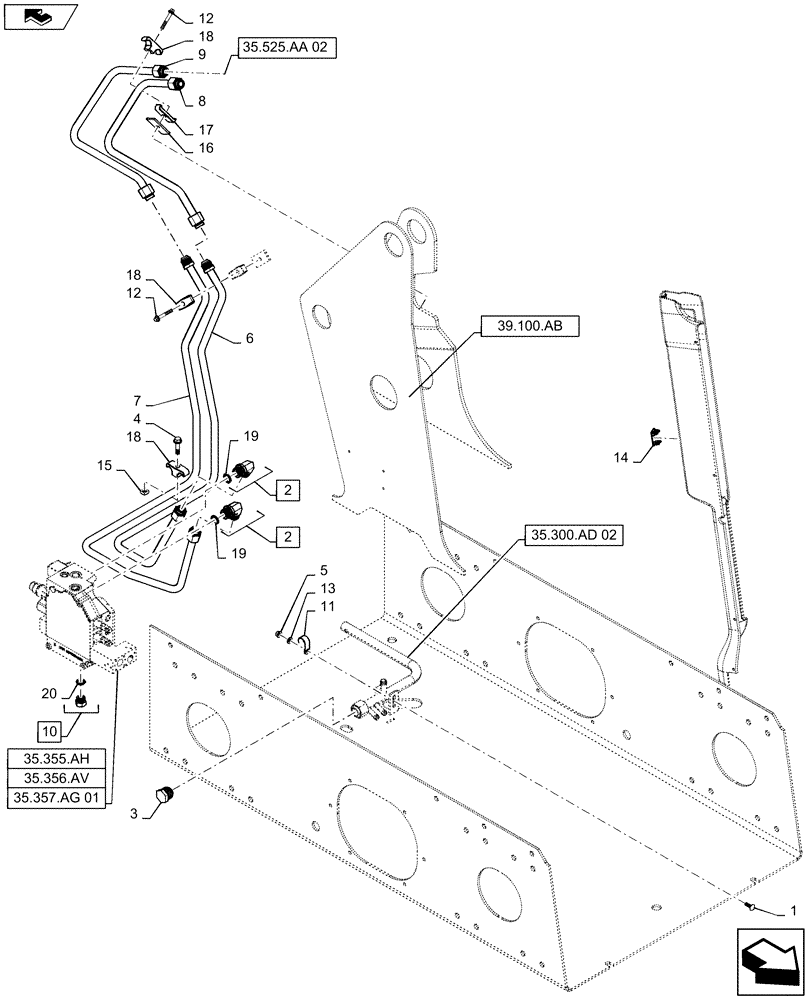

Запчасти Case IH SV250 (35.525.AA[01]) - AUXILIARY CHASSIS PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 19

2шт.

3

9790527

PLUG,1-5/16" - 12 JIC

Hydraulic Drain Tube

1шт.

4

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

84377508

Auxiliary, Loader Valve To LH Tower

TUBE

1шт.

7

84377510

Auxiliary, Loader Valve To LH Tower

TUBE

1шт.

8

84379987

Auxiliary, LH Tower To LH Loader Arm

HYD TUBE

1шт.

9

84379989

Auxiliary, LH Tower To LH Loader Arm

HYD TUBE

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl 20

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

14

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

16

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp, Top Bar

2шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube, Top

2шт.

18

D124301

CLAMP,3/4" ID

Tube, 3/4"

3шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
