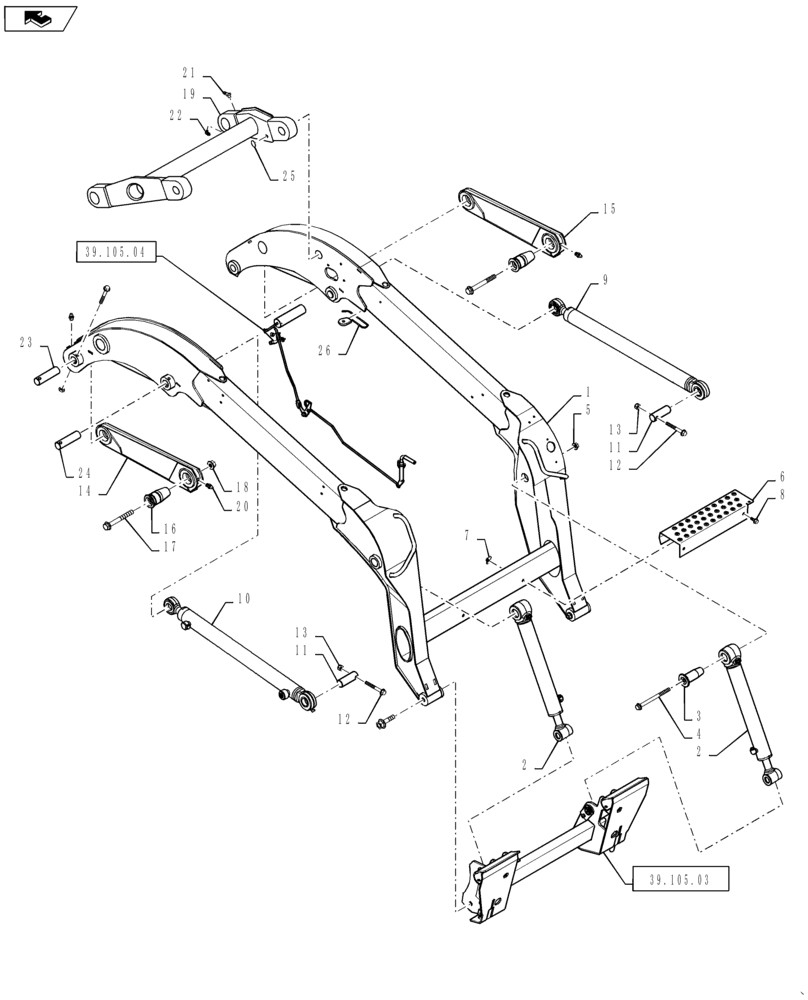

Запчасти Case IH SV250 (84.910.AA) - BOOM SV250 (84) - BOOMS, DIPPERS & BUCKETS

1

84391760

KIT

Boom Assembly

1шт.

2

84290563

Bucket

BUCKET CYLINDER

2шт.

3

84319704

Boom to Tip Cylinder, Years: -30-JUL-13

PIN,50mm OD x 111mm L

2шт.

3

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cylinder, Start Year: 31-JUL-13

2шт.

4

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

6

84377147

Loader Step, Tan

STEP

1шт.

7

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

84358576

Hyd Lift Cylinder, LH

CYLINDER

1шт.

10

84358575

Hyd Lift Cylinder, RH

CYLINDER

1шт.

11

84280377

PIN,38.15mm OD x 98mm L

Chassis to Lift Cylinder

2шт.

12

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

13

86512554

NUT,M10 x 1.5, Cl 10

8шт.

14

84378089

Lower Link RH, Order Kit 84409152

LOWER LINK

1шт.

15

84270979

LIFT LINK

Lower Link LH, Order Kit 84409152

1шт.

16

84239550

PIN,60.32mm OD x 126.5mm L

Boom Links

4шт.

17

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

4шт.

18

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

19

84593067

LINK

, Years: -30-JUL-13

1шт.

19

47502239

LINK

, Start Year: 31-JUL-13

1шт.

20

87414

LUBE NIPPLE,1/4" - 28

4шт.

21

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

22

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

23

84201510

PIN,38.15mm OD x 146mm L

Boom to Lift Cylinder

4шт.

24

84423056

Boom to Lift Clylinder (Not Shown) Located near center of boom

PIN,38.15mm OD x 133.3mm L

2шт.

25

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan, 25.4mm

3шт.

26

84411613

Hose Loop Guide (Not Shown)

GUIDE

2шт.

27

9846562

BUSHING,60.35mm ID x 65.13mm OD x 25.4mm L

Used In Ref. 14, And Ref. 15 (Not Shown)

2шт.

28

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Used in Ref. 14, And Ref. 15 (Not Shown)

2шт.

29

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

used on Base of Tipping Cylinder, Not Illustrated, Start Year: 31-JUL-13

2шт.

30

84201509

Boom to Coupler

HUB

2шт.

31

84201515

Boom to Tip Cyl

HUB

2шт.

32

84201513

HUB,101.4mm OD x 121.6mm L

Boom to H-Link

2шт.

33

84201518

HUB,38.5mm ID x 69.85mm OD x 48.5mm L

Boom to Link

2шт.
