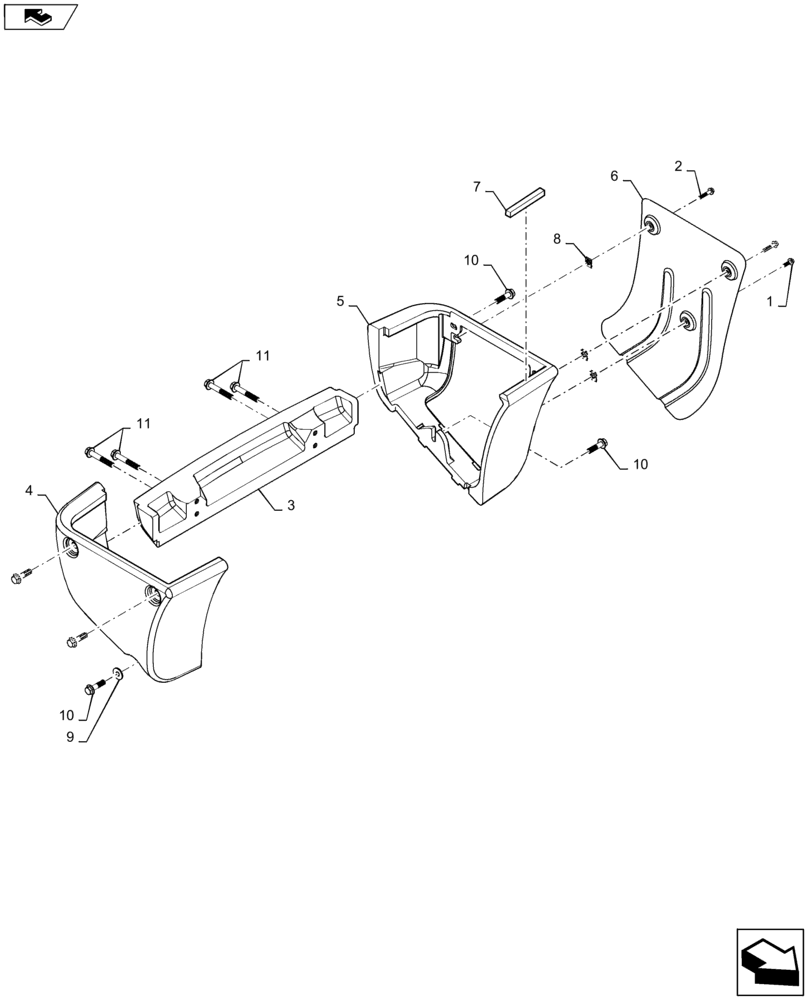

Запчасти Case IH SV250 (39.140.AM) - COUNTERWEIGHT (SR220, SV250, TR320, TV380) (39) - FRAMES AND BALLASTING

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

2

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

3

84272808

Bumper, Rear

BUMPER

1шт.

4

84272810

Bumper, RH

BUMPER

1шт.

5

84272812

Bumper, LH

BUMPER

1шт.

6

84273168

Battery Compartment

COVER PLATE

1шт.

7

84355546

Counterweight Adhesive

FOAM INSULATION,215mm L

1шт.

8

86625071

SPRING NUT,M10 x 1.5

3шт.

9

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20, 21.25 x 38.1 x 4.2, HTS, BORON, ZN

1шт.

10

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

6шт.

11

87698850

BOLT,M16 x 100mm, Cl 10.9

Hex, M16 - 2 x 100mm, Class 10.9, ZND

4шт.
