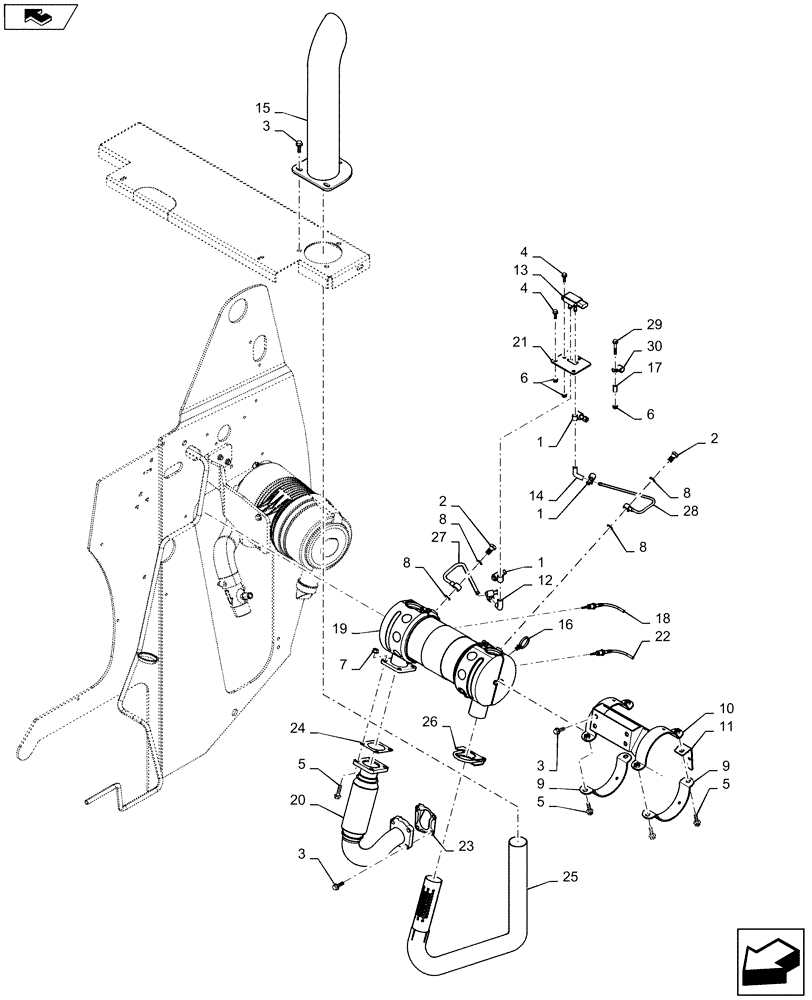

Запчасти Case IH SV185 (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

1

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

4шт.

2

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

11шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

5

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

8шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

4шт.

9

47428309

Heat Resistant

COLLAR CLAMP

2шт.

10

47428312

DOC

CLAMP

1шт.

11

47489202

Temperature Sensor

MOUNT

1шт.

12

84426109

Delta Pressure

HOSE

1шт.

13

84491894

SENSOR

Delta Pressure

1шт.

14

84492738

Delta Pressure

HOSE

1шт.

15

84495949

EXTENSION

Exhaust Stack

1шт.

16

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

17

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

1/8" Pipe

1шт.

18

84535501

SENSOR

Temperature

1шт.

19

84538517

FILTER

Diesel Oxidation Catalyst

1шт.

20

84549036

TUBE

Exhaust, Flexible, HPCR

1шт.

21

84554727

BRACKET

Delta Pressure

1шт.

22

84568821

SENSOR

Temperature

1шт.

23

84568825

GASKET

Exhaust, Engine Side

1шт.

24

84568826

GASKET

Exhaust, DOC Side

1шт.

25

84569347

TUBE

Exhaust

1шт.

26

84588569

CLAMP,54mm ID, Muffler

Muffler, 2"

1шт.

27

84600714

TUBE

Delta Pressure

1шт.

28

84600715

TUBE

Delta Pressure

1шт.

29

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

1шт.

30

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.
