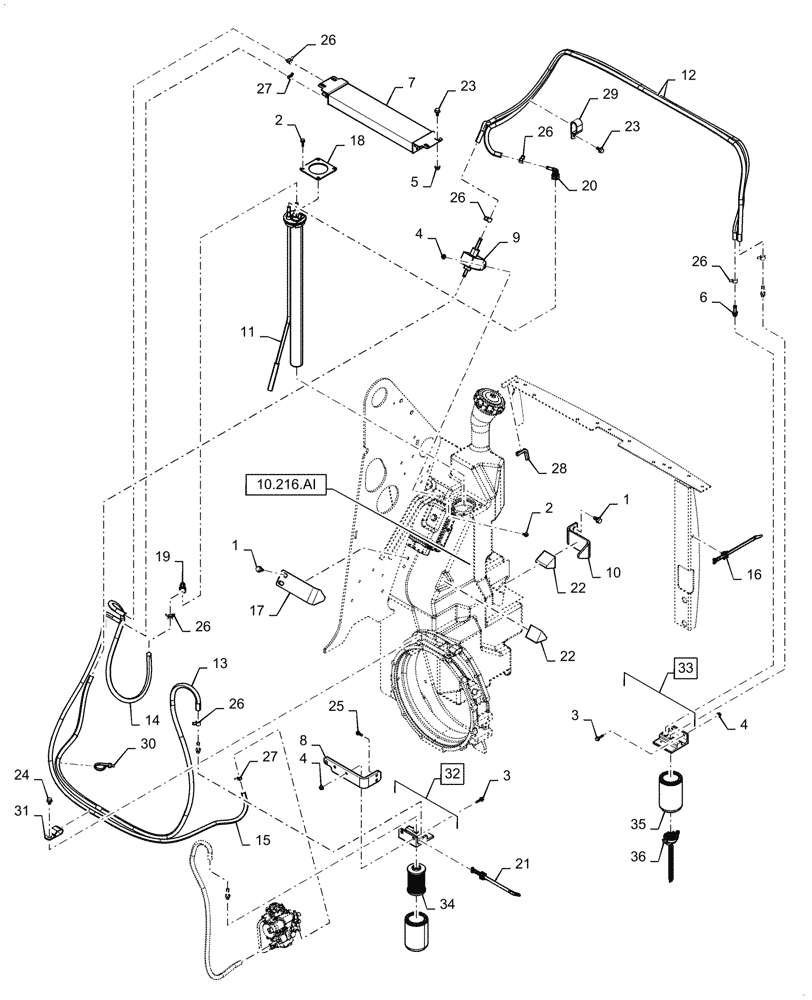

Запчасти Case IH SV185 (10.210.AF) - FUEL LINES (18-JUN-2015 & NEWER) (10) - ENGINE

1

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

4шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

6шт.

3

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

6

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

7

47402238

FUEL COOLER

519.4mm L

1шт.

8

47439923

Engine Bay Fuel Filter Mounting

BRACKET

1шт.

9

47465735

Electric

FUEL PUMP,12V, 1.4A

1шт.

10

47710480

Fuel Tank Support

BRACKET

1шт.

11

47747587

SENDER UNIT

Fuel

1шт.

12

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 5.71 FT

2шт.

13

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 5.5 FT

1шт.

14

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 2.76 FT

1шт.

15

47394323

FUEL HOSE

Cut to Length, 5.5 FT

1шт.

16

84259663

CABLE TIE,228.6mm L, Nylon, Black

5шт.

17

84273624

Fuel Tank Support

BRACKET

1шт.

18

84338049

MOUNTING PLATE

Fuel Sending Unit Retainer

1шт.

19

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

20

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

21

84379484

CABLE TIE,228.6mm L, Nylon, Black

1шт.

22

84602030

PAD

Foam

2шт.

23

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

24

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

25

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

2шт.

26

87436932

CLAMP,13.9mm - 15.5mm, Spring

8шт.

27

87436933

CLAMP,11.7mm - 13.9mm

2шт.

28

87702286

Cut to Length, 85.3mm

TRIM,Bulk, 1/8" x 30480mm L

1шт.

29

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

8шт.

31

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

2шт.

32

84299976

FILTER ASSY

Engine Bay, Incl 34

1шт.

33

84559030

FUEL FILTER

Door, Incl 35, 36

1шт.

34

84299977

ELEMENT

Engine Bay, Fuel Filter

1шт.

35

84561653

FUEL FILTER

Door

1шт.

36

84527833

WIF

SENSOR

1шт.
