Запчасти Case IH SV185 (88.035.16) - DIA KIT, 2ND FRONT HYD AUX - MED VERT (88) - ACCESSORIES

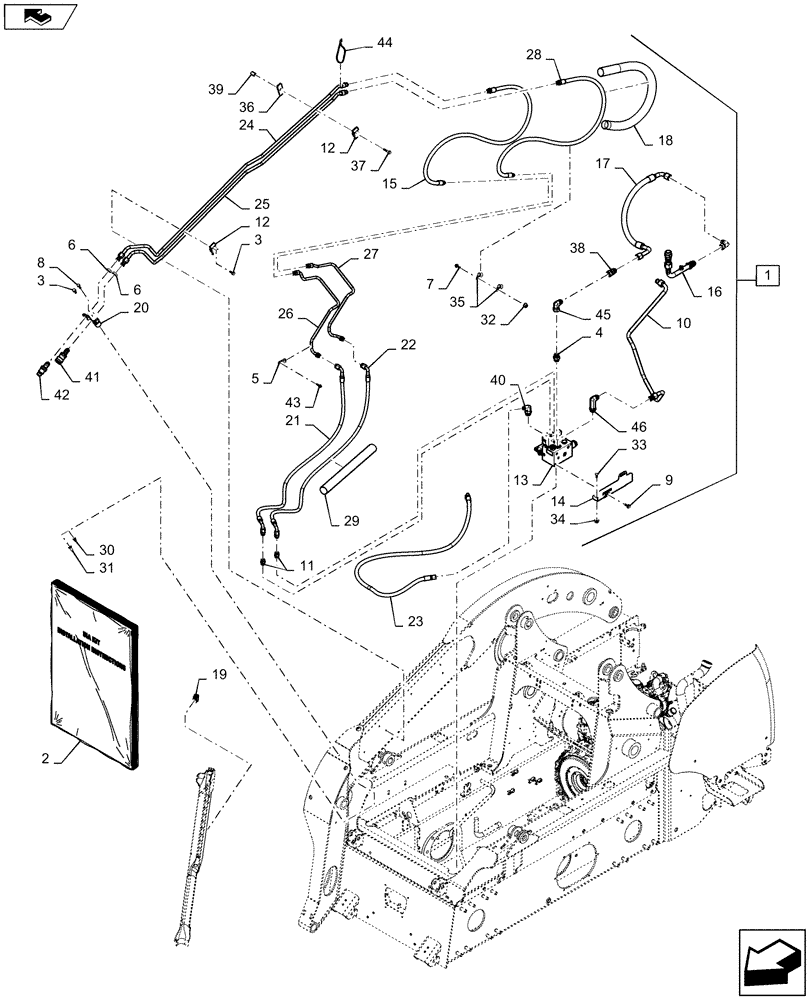

Схема запчастей Case IH SV185 - (88.035.16) - DIA KIT, 2ND FRONT HYD AUX - MED VERT (88) - ACCESSORIES
6
13
25
44
35
31
30
26
39
12
5
22
4
41
40
42
45
17
6
1
46
38
18
24
19
home
36
23
37
3
15
20
3
34
33
10
21
7
2
14
28
32
11
9
27
8
16
12
29
43

Артикул

Название

Примечание

Количество

1

47483683

KIT

DIA, 2nd Front Hyd Aux Med Vert, Incl, 2 - 46

1шт.

2

47483692

INSTRUCTION

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

6

595460

BHD LOCK NUT,7/8" - 14

2шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

47482778

2nd Auxillary Control

TUBE

1шт.

11

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

12

84252828

CLAMP,65.2mm L

Butterfly Tube

3шт.

13

84292198

VALVE

EH Secondary Auxillary

1шт.

14

84322489

SUPPORT

2nd Auxillary Valve

1шт.

15

84330254

2nd Auxillary A

HOSE ASSY.,12.7mm ID x 1769mm L, SAE 100R17

1шт.

16

84332288

RIGID TUBE

2nd Auxillary Valve Return

1шт.

17

84355404

2nd Auxillary Supply

HOSE ASSY.

1шт.

18

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

19

84392527

SWITCH

Rocker, Auxillary Electric

1шт.

20

84474235

Auxillary Coupler

BRACKET

1шт.

21

84474953

2nd Auxillary A

HOSE ASSY.

1шт.

22

84474956

2nd Auxillary B

HOSE ASSY.

1шт.

23

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

2nd Auxillary Return

1шт.

24

84475147

2nd Auxillary Arm A

HYD TUBE

1шт.

25

84475153

2nd Auxillary Arm B

HYD TUBE

1шт.

26

84475155

2nd Auxillary A-2

HYD TUBE

1шт.

27

84475157

2nd Auxillary B-2

HYD TUBE

1шт.

28

84475160

2nd Auxillary B

HOSE ASSY.,12.7mm ID x 1745mm L, SAE 100R17

1шт.

29

84475182

HOSE PROTECTION

1шт.

30

84531322

RIVET,12.7mm OD x 21.5mm L

2шт.

31

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

32

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

35

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

36

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

37

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

38

87058492

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 Fem Sw

1шт.

39

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

1шт.

40

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

41

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

42

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

43

87752075

SCREW,HWH, M8 x 1.25 x 25mm

2шт.

44

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

45

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

2шт.

46

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.

Выбрано товаров: 46
