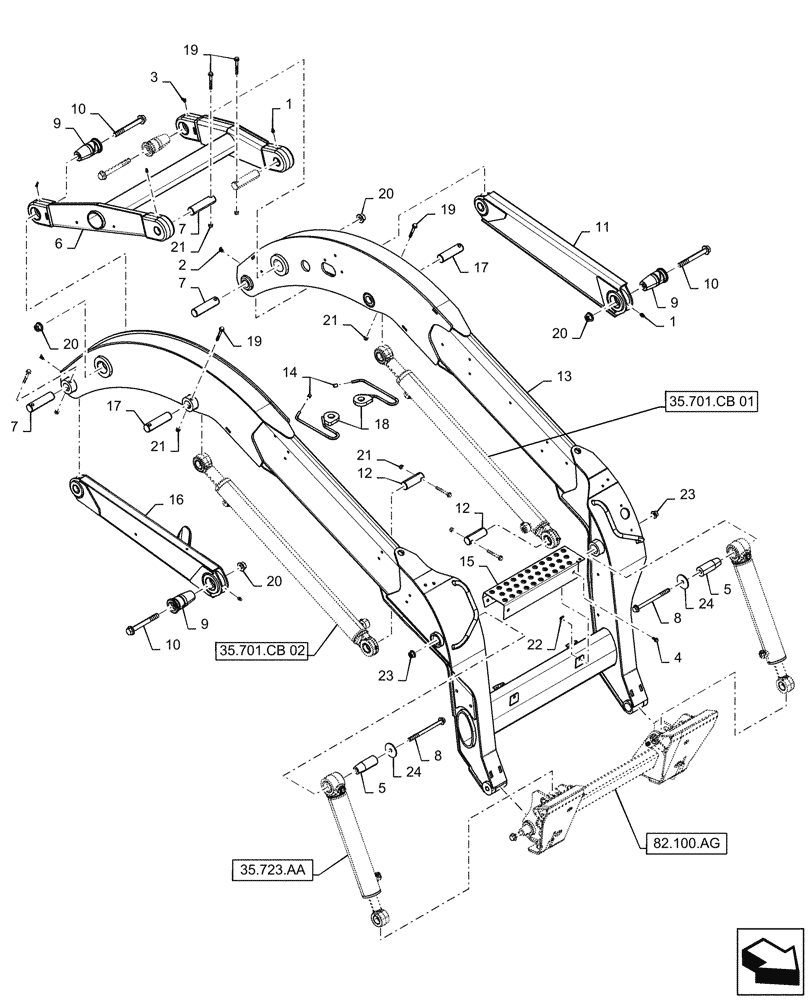

Запчасти Case IH SV185 (82.100.AF[01]) - LOADER ARM (82) - FRONT LOADER & BUCKET

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cylinder

2шт.

6

84593496

LINK

H, Gray

1шт.

7

84201510

PIN,38.15mm OD x 146mm L

Boom to Lift Cylinder

4шт.

8

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

9

84239550

PIN,60.32mm OD x 126.5mm L

Boom to Links

4шт.

10

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

4шт.

11

84270982

LH, Lower, Gray

LIFT LINK

1шт.

12

84280377

PIN,38.15mm OD x 98mm L

Chassis to Lift Cylinder

2шт.

13

84330920

Gray

BOOM

1шт.

14

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Vinyl

1шт.

15

84377147

Loader, Tan

STEP

1шт.

15

84377148

STEP

Loader, Gray

1шт.

16

47372488

RH, Lower, Gray

CONNECTING LINK

1шт.

17

84423056

Boom to Lift Cylinder

PIN,38.15mm OD x 133.3mm L

2шт.

18

84519586

GUIDE

Hose Loop

1шт.

19

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

20

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

21

86512554

NUT,M10 x 1.5, Cl 10

8шт.

22

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

23

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

2шт.
