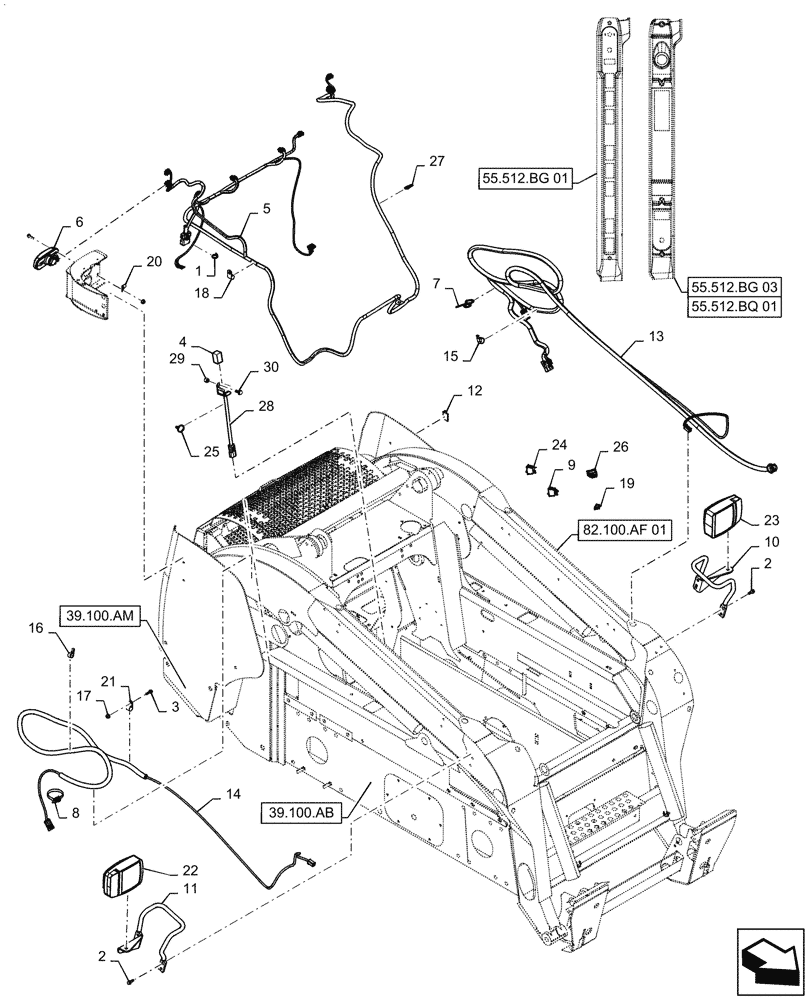

Запчасти Case IH SV185 (55.404.AZ) - EU, ROAD LIGHTS, MED, VERT (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

9821783

FLASHER UNIT

1шт.

5

47821008

Rear Road Jumper, Case

WIRE HARNESS

1шт.

6

47941860

Rear Road, Case

LAMP

1шт.

7

82012869

CABLE TIE,300mm L, Nylon, Black

Double Loop

4шт.

8

84259663

CABLE TIE,228.6mm L, Nylon, Black

Mount Assy

2шт.

9

84263153

SWITCH

Loader Lockout

1шт.

10

84306583

BRACKET

Light LH

1шт.

11

84306585

BRACKET

Light RH

1шт.

12

84416164

FOAM INSULATION

Upper Chassis

2шт.

13

84420530

WIRE HARNESS

Boom LH

1шт.

14

84423502

WIRE HARNESS

Boom Lamp

1шт.

15

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

Insulated

1шт.

16

84522291

CLAMP,19mm, Insulated, 8.7mm Bolt Hole - P Type

Insulated

1шт.

17

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

18

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

Insulated

4шт.

19

86604657

INDICATOR, TURN SIGN

1шт.

20

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

Insulated

2шт.

21

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

Insulated

1шт.

22

87572859

LAMP

Combination Right

1шт.

23

87572860

LAMP

Combination Left

1шт.

24

87634133

SWITCH

Hazard Lights

1шт.

25

87668737

CABLE TIE,203.2mm L, Nylon, Black

6шт.

26

131691A1

ROCKER SWITCH

Front & Rear Coupler

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

28

47972152

JUMPER

Wire Harness, Flasher

1шт.

29

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

30

86639263

BOLT,Hex, M5, Cl 8

1шт.
