Запчасти Case IH SV185 (50.200.BY) - AIR CONDITIONER, PLUMBING - BEFORE 04-JUN-2015 (50) - CAB CLIMATE CONTROL

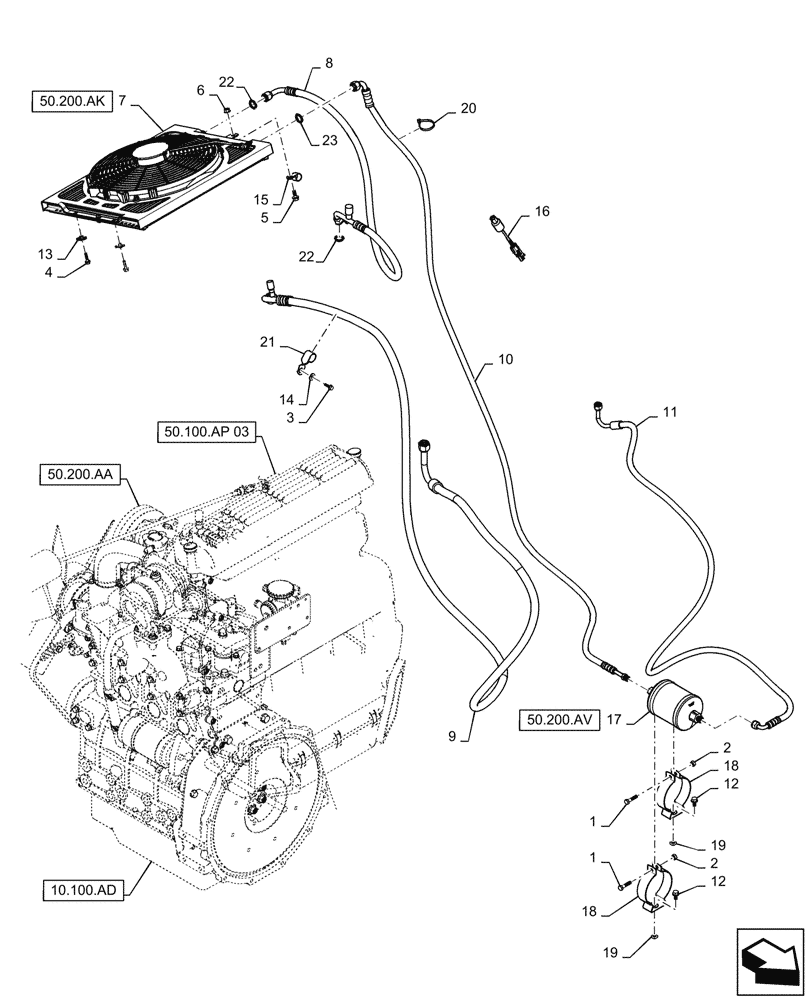

Схема запчастей Case IH SV185 - (50.200.BY) - AIR CONDITIONER, PLUMBING - BEFORE 04-JUN-2015 (50) - CAB CLIMATE CONTROL
12
10.100.ad
17
4
1
50.200.ak
5
2
22
6
10
50.200.av
18
13
1
8
50.200.aa
22
12
9
23
21
18
19
19
14
2
11
15
50.100.ap 03
16
3
20
7

Артикул

Название

Примечание

Количество

1

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

2

9706690

NUT,M8 x 1.25, Cl 8

2шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

47376521

CONDENSER

1шт.

8

47442911

HOSE ASSY.

1шт.

9

47496643

A/C HOSE

1шт.

10

84347312

HOSE,9.53mm ID x 2040mm L

1шт.

11

84403037

HOSE ASSY.

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

13

86625073

SPRING NUT,M6 x 1

4шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87000227

SWITCH, A/C HIGH PRE

1шт.

17

47821526

RECEIVER-DRYER

1шт.

18

87105841

BRACKET

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

21

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

22

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

Выбрано товаров: 23
