Запчасти Case IH SV185 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

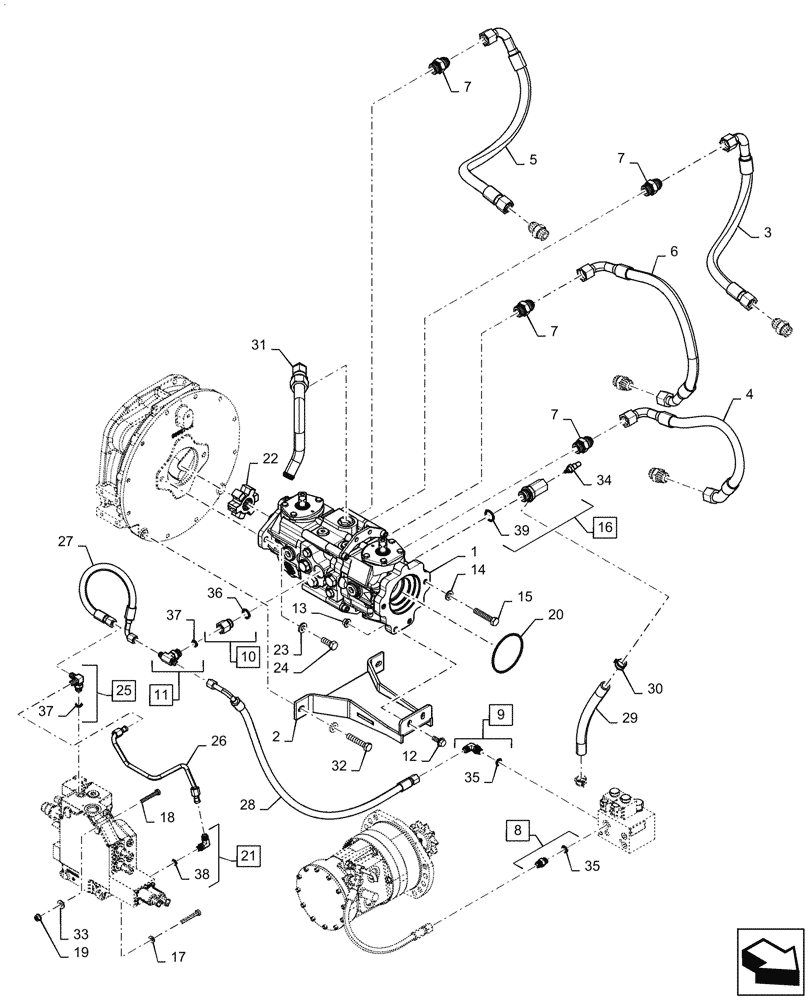

Схема запчастей Case IH SV185 - (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE
19
37
29
7
25
27
12
14
18
23
2
13
35
24
21
15
20
7
39
34
7
11
26
6
37
3
22
17
8
9
10
35
28
38
31
4
33
16
5
36
32
7
30
1

Артикул

Название

Примечание

Количество

1

84256059

Hydraulic Tandem

PUMP,35 CC

1шт.

2

84254080

Pump Support, Gray

PLATE

1шт.

3

84258854

Loop

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

1шт.

4

47843573

Loop

HYDRAULIC HOSE,16mm ID x 621mm L, SAE 100R19

1шт.

5

84412421

Loop, Years: -17-MAR-15

HYDRAULIC HOSE,16mm ID x 730mm L, SAE 100R19

1шт.

5

47843574

Loop, Start Year: 18-MAR-15

HYDRAULIC HOSE,16mm ID x 707mm L, SAE 100R19

1шт.

6

47843574

Loop

HYDRAULIC HOSE,16mm ID x 707mm L, SAE 100R19

1шт.

7

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

8шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 35, Years: -02-OCT-16

1шт.

8

76349

PLUG,9/16" - 18 ORB

, Start Year: 03-OCT-16

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 35

1шт.

10

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

Incl 36

1шт.

11

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 37

1шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

15

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

2шт.

16

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 39

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

18

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

21

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 38

1шт.

22

87713745

CLUTCH,15T

1шт.

23

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

24

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

25

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 37

1шт.

26

84373389

RIGID TUBE,9.53mm OD

EH Aux Charge

1шт.

27

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Interlock

1шт.

28

84201225

Charge to Brake Valve

HOSE ASSY.,9.53mm ID x 745mm L, SAE 100R17

1шт.

29

84273648

Pump Drain

HOSE,15.88mm ID x 245mm L

1шт.

30

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

31

84291886

RIGID TUBE,25.4mm OD

1шт.

32

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

33

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

34

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

38

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 41
