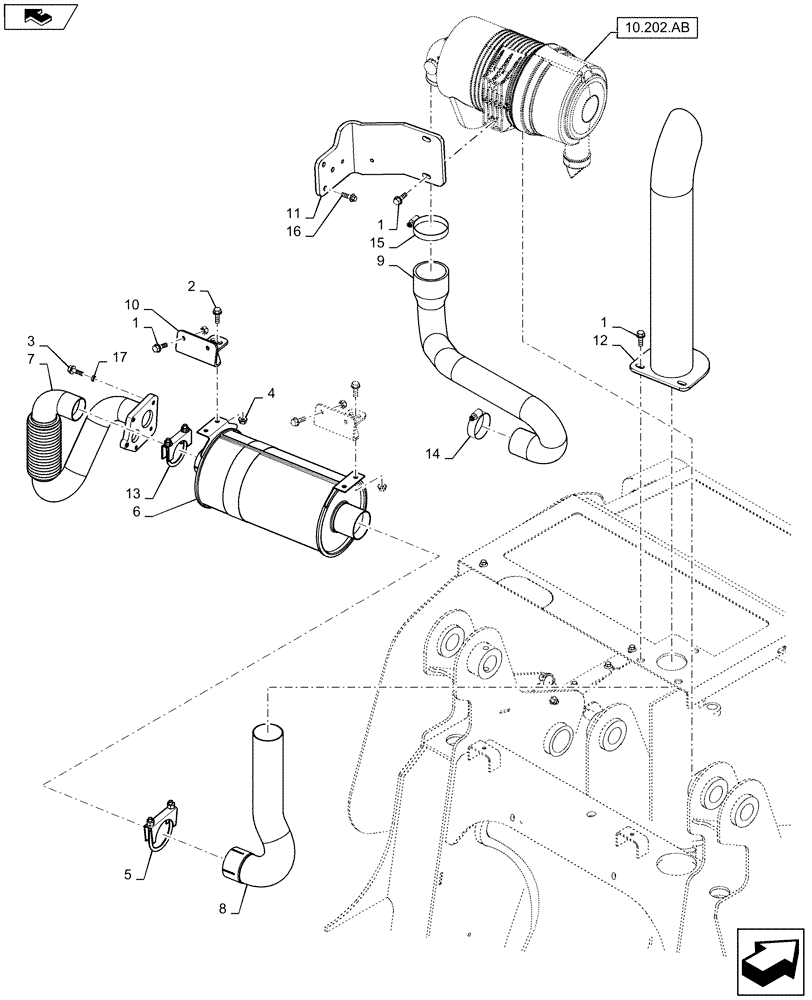

Запчасти Case IH SV185 (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

1

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

87461995

CLAMP,68mm ID, Muffler

Muffler, 2.68"

1шт.

6

84287171

Bilen ISM

MUFFLER,Aspirated

1шт.

7

84287177

Exhaust Flexible

TUBE

1шт.

8

84287180

Exhaust Tailpipe

TUBE

1шт.

9

84287200

Air Cleaner To Turbo

HOSE

1шт.

10

84308151

Muffler

MOUNTING PLATE

2шт.

11

84370092

Air Cleaner ISM

BRACKET

1шт.

12

84495949

EXTENSION

Exhaust Stack

1шт.

13

84588569

CLAMP,54mm ID, Muffler

Muffler, 2'

1шт.

14

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

15

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

16

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

17

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.
