Запчасти Case IH SV185 (90.105.CU[02]) - INSULATION, SOUNDPROOFING, OPEN CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS

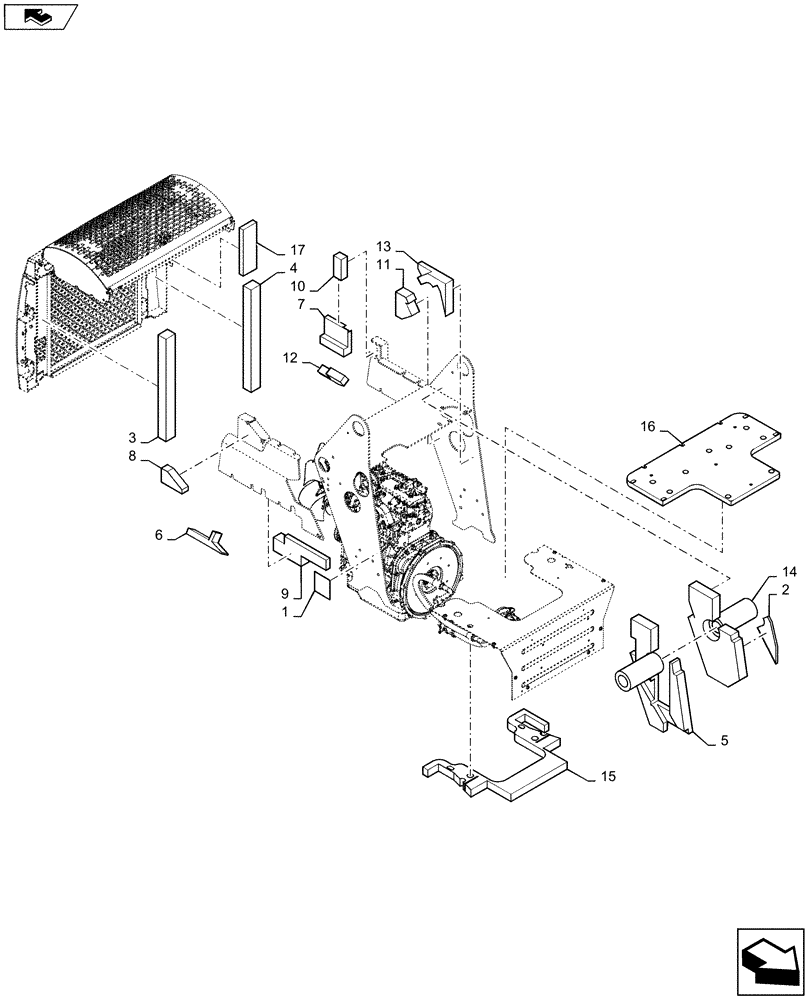

Схема запчастей Case IH SV185 - (90.105.CU[02]) - INSULATION, SOUNDPROOFING, OPEN CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
4
11
2
10
8
1
13
14
6
home
9
16
7
5
12
15
3

Артикул

Название

Примечание

Количество

1

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.

2

84380909

Chassis LH

INSULATION

1шт.

3

84374184

Rear Door RH

FOAM INSULATION

1шт.

4

84374183

Rear Door LH

FOAM INSULATION

1шт.

5

84366323

Chassis RH

FOAM INSULATION

1шт.

6

84366324

Chassis RH

FOAM INSULATION

1шт.

7

84366325

Chassis LH

FOAM INSULATION

1шт.

8

84366326

FOAM INSULATION

Chassis RH

1шт.

9

84366327

Chassis RH

FOAM INSULATION

1шт.

10

84366329

Chassis LH

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

1шт.

11

84366331

Chassis LH

FOAM INSULATION

1шт.

12

84366332

Chassis LH

FOAM INSULATION

1шт.

13

84366333

Chassis LH

FOAM INSULATION

1шт.

14

84366334

Chassis Front LH

FOAM INSULATION

1шт.

15

84366352

Heal Plate Vertical

FOAM INSULATION

1шт.

16

84372040

FOAM

Seat Pan

1шт.

17

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

Выбрано товаров: 17
