Запчасти Case IH SV185 (55.512.BW[03]) - MULTIFUNCTION ELECTRICAL HARNESS (55) - ELECTRICAL SYSTEMS

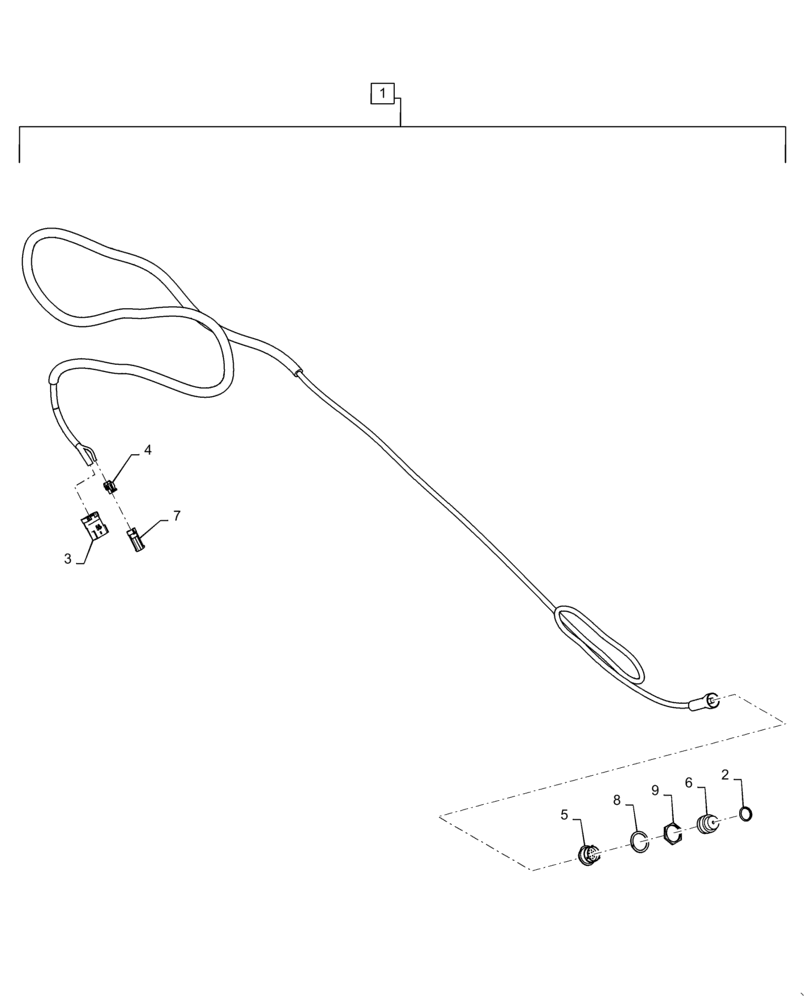

Схема запчастей Case IH SV185 - (55.512.BW[03]) - MULTIFUNCTION ELECTRICAL HARNESS (55) - ELECTRICAL SYSTEMS
3
4
9
8
1
7
2
5
6

Артикул

Название

Примечание

Количество

1

84423501

WIRE HARNESS

Vertical Multifuction, Incl 2 - 9

1шт.

1

84251321

Radial Multifuction, Incl 2 - 9

WIRE HARNESS

1шт.

2

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split

1шт.

3

87382923

ELEC CONNECTOR,Male, 10 Cavities

1шт.

4

87693821

ELEC CONNECTOR,Female, 2 Cavities

1шт.

5

87696137

ELEC CONNECTOR,Male, 14 Cavities

1шт.

6

86621909

CAP

Dust

1шт.

7

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

8

490691C1

LOCK WASHER,#18 Shell

1шт.

9

490692C1

LOCK NUT,#18 Shell

1шт.

Выбрано товаров: 10
