Запчасти Case IH SV185 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

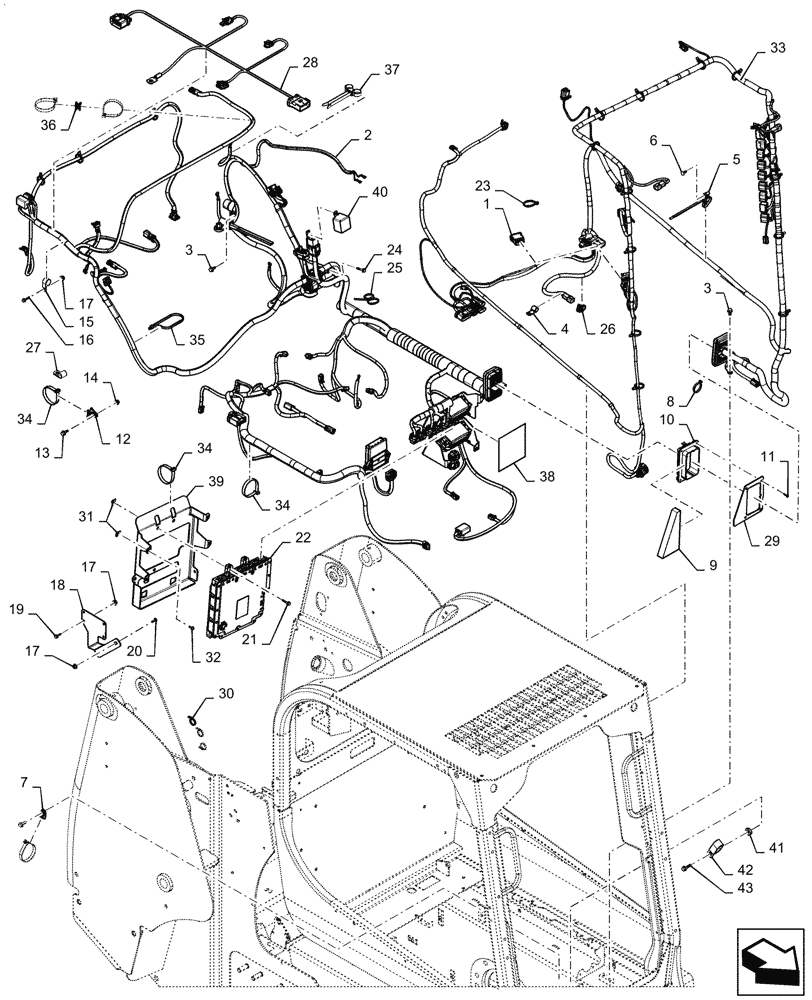

Схема запчастей Case IH SV185 - (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS
8
30
12
7
16
13
17
1
33
17
43
3
9
27
23
38
6
4
42
32
25
2
35
40
37
15
3
10
26
17
34
20
18
22
19
31
11
39
36
29
41
34
14
21
24
34
28
5

Артикул

Название

Примечание

Количество

1

84251343

SWITCH

Rocker, Drive Pattern

1шт.

2

47961512

Chassis, EH

WIRE HARNESS

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

4

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

5

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

6

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

7

47689101

Wire Harness

MOUNT

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

2шт.

9

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

10

87718301

WIRE CONNECTOR,Flange

1шт.

11

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

12

84360210

BASE

Tie

1шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

18

47832750

GCU Fuse Mounting

BRACKET

1шт.

19

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

20

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

21

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

22

84267444

SSL

ECU

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

24

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

25

82012869

CABLE TIE,300mm L, Nylon, Black

9шт.

26

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

27

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

28

47954073

RH Tower

WIRE HARNESS

1шт.

29

47867182

Bulkhead Adapter, Gray

PLATE

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

7шт.

31

86625073

SPRING NUT,M6 x 1

10шт.

32

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

33

47920678

Cab, EH

WIRE HARNESS

1шт.

34

84360212

CABLE TIE,294.2mm L, Nylon

29шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

36

84318895

SPACER,17.97mm H

2шт.

37

84386243

CLAMP,489mm L

1шт.

38

47946330

Fuse Box Layout, EH/EHF

DECAL

1шт.

39

47860657

BRACKET

UCM Support, Gray

1шт.

40

47932510

BRACKET

Relay Shield, Gray

1шт.

41

47048664

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

42

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

1шт.

43

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

Выбрано товаров: 43
