Запчасти Case IH SV185 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

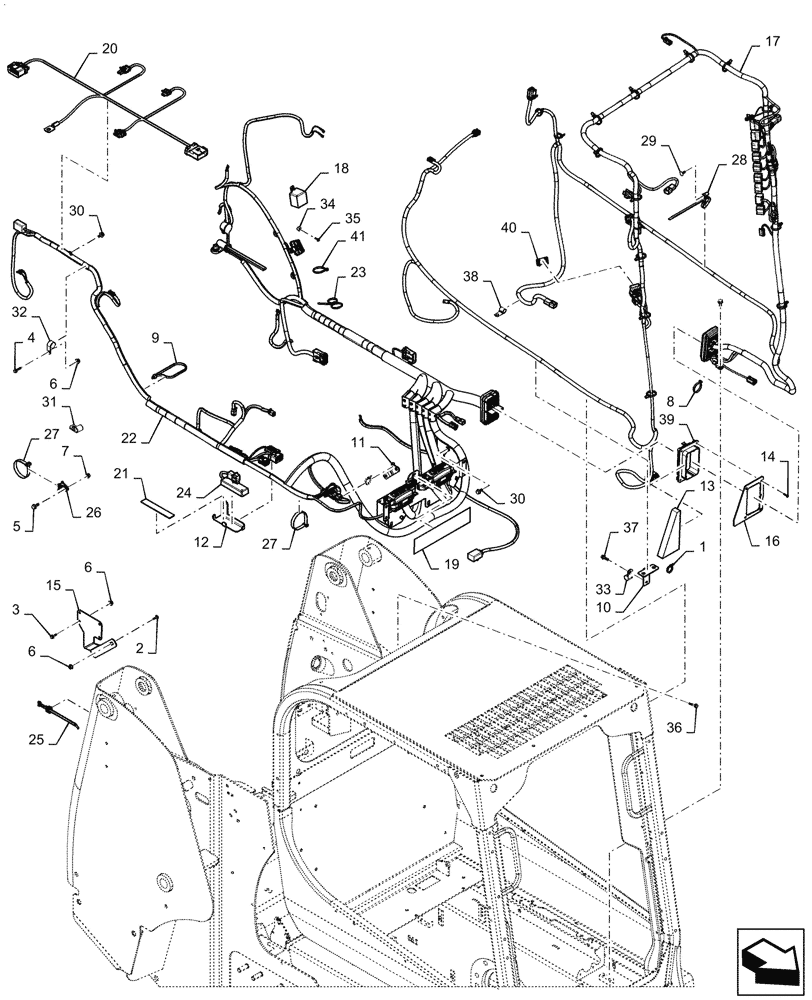

Схема запчастей Case IH SV185 - (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS
23
15
11
30
18
17
7
33
22
10
39
26
21
8
31
3
5
9
25
40
41
28
4
1
34
32
36
12
2
24
14
37
38
30
19
27
13
6
6
27
16
35
6
29
20

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

5шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

10

47807585

BRACKET

Harness Crossover

1шт.

11

47807590

BRACKET

Crossover, Lower Guide

1шт.

12

47807591

BRACKET

Control Tray

1шт.

13

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

14

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

15

47832750

GCU Fuse Mount

BRACKET

1шт.

16

47867182

Bulkhead Adapter Gray

PLATE

1шт.

17

47920676

Cab, Mech

WIRE HARNESS

1шт.

18

47932510

BRACKET

Relay Shield, Gray

1шт.

19

47946329

Fuse Box Layout, Mech

DECAL

1шт.

20

47954073

RH Tower

WIRE HARNESS

1шт.

21

47955279

TAPE,150mm L

1шт.

22

47961510

Chassis, Mech

WIRE HARNESS

1шт.

23

82012869

CABLE TIE,300mm L, Nylon, Black

9шт.

24

84131374

MODULE

Prop Aux

1шт.

25

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

26

84360210

BASE

Tie

1шт.

27

84360212

CABLE TIE,294.2mm L, Nylon

23шт.

28

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

29

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

30

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

31

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

32

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

33

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

34

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

35

86639263

BOLT,Hex, M5, Cl 8

1шт.

36

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

37

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

1шт.

38

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

39

87718301

WIRE CONNECTOR,Flange

1шт.

40

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 41
