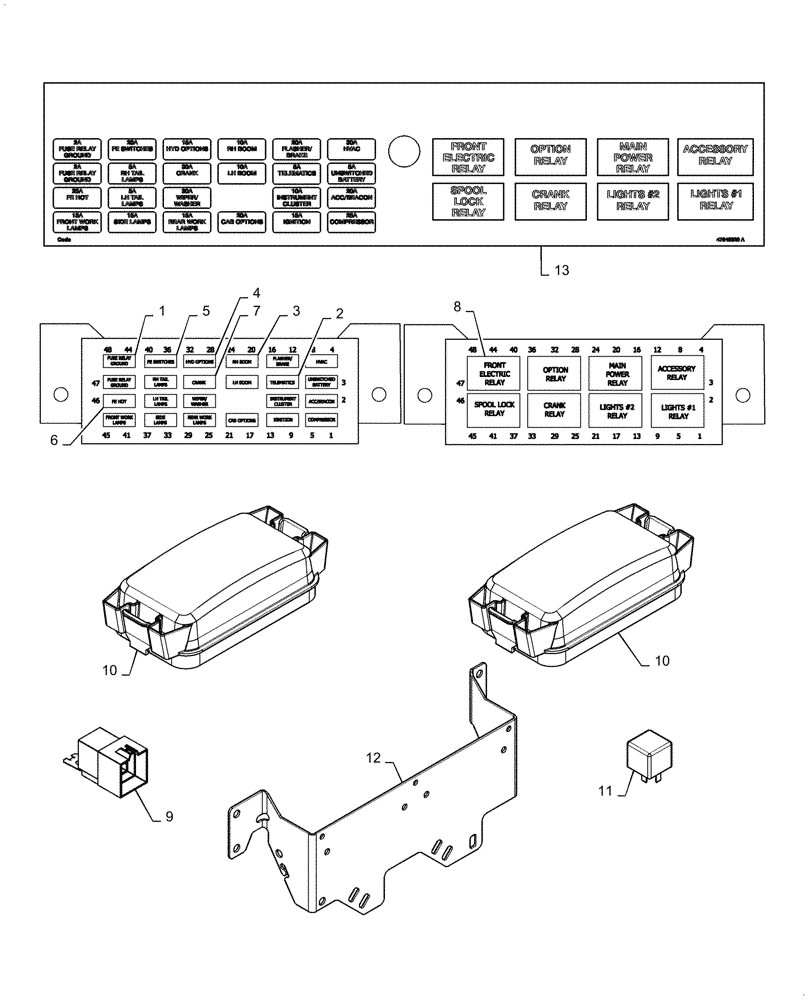

Запчасти Case IH SV185 (55.100.DO[01]) - FUSE & RELAY, MECHANICAL CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

84153828

FUSE,2A, Mini, Gray

2шт.

2

84153830

FUSE,5A, Mini, Beige

4шт.

3

84127702

FUSE,10A, Mini, Red

3шт.

4

84127703

FUSE,15A, Mini, Blue

5шт.

5

84127704

FUSE,20A, Mini, Yellow

4шт.

6

84127705

FUSE,25A, Mini, White

2шт.

7

84127708

FUSE,30A, Mini, Green

3шт.

8

87696396

RELAY,12V, 35A, Micro

8шт.

9

84297432

Preheat Solenoid

RELAY,12V, 70A

1шт.

10

84255450

Cover

FUSE BOX

2шт.

11

84543666

RELAY,12V, 40A, Mini

2шт.

12

47840305

Fuse Box

BRACKET

1шт.

13

47946329

Fuse Box Layout, Mech

DECAL

1шт.
