Запчасти Case IH SV185 (39.140.AM) - COUNTERWEIGHT (03-OCT-2016 & NEWER) (39) - FRAMES AND BALLASTING

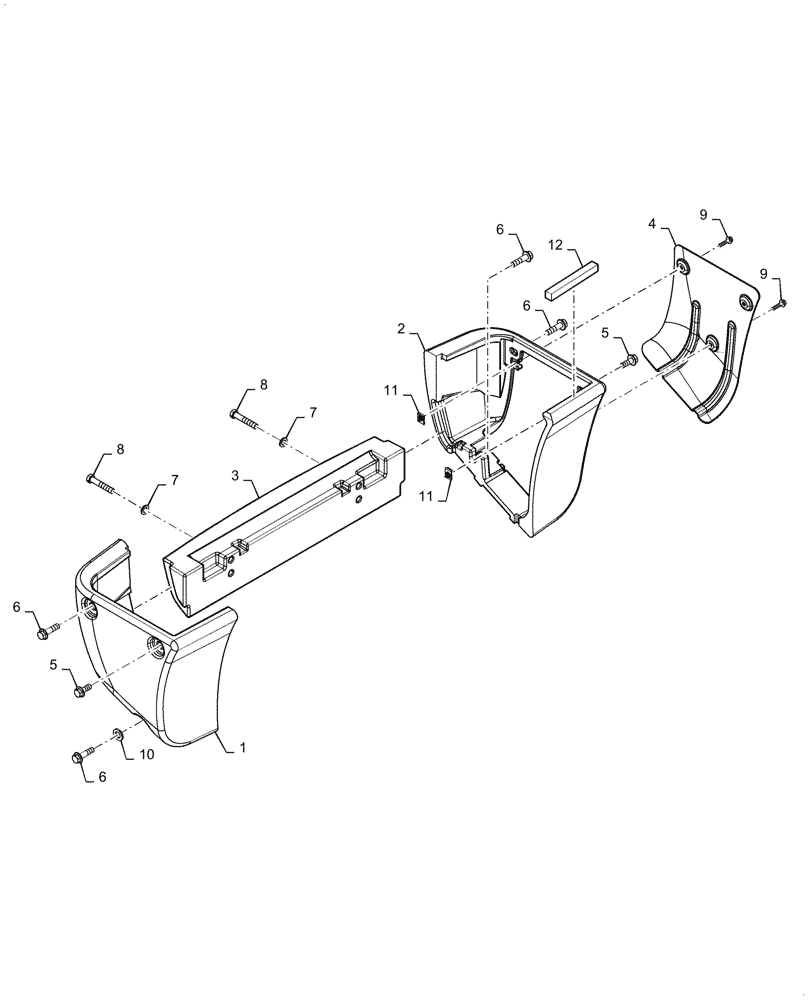

Схема запчастей Case IH SV185 - (39.140.AM) - COUNTERWEIGHT (03-OCT-2016 & NEWER) (39) - FRAMES AND BALLASTING
9
3
11
6
4
8
6
6
6
7
12
5
5
11
7
10
8
1
9
2

Артикул

Название

Примечание

Количество

1

47919147

Right, Gray

BUMPER

1шт.

2

47919150

Left, Gray

BUMPER

1шт.

3

47919151

Rear, Gray

COVER

1шт.

4

47919158

Battery Compartment, Gray

BUMPER

1шт.

5

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.

6

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

9

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

10

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

11

86625071

SPRING NUT,M10 x 1.5

3шт.

12

84355546

Adhesive

FOAM INSULATION,215mm L

1шт.

Выбрано товаров: 12
