Запчасти Case IH SV185 (39.140.AM) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

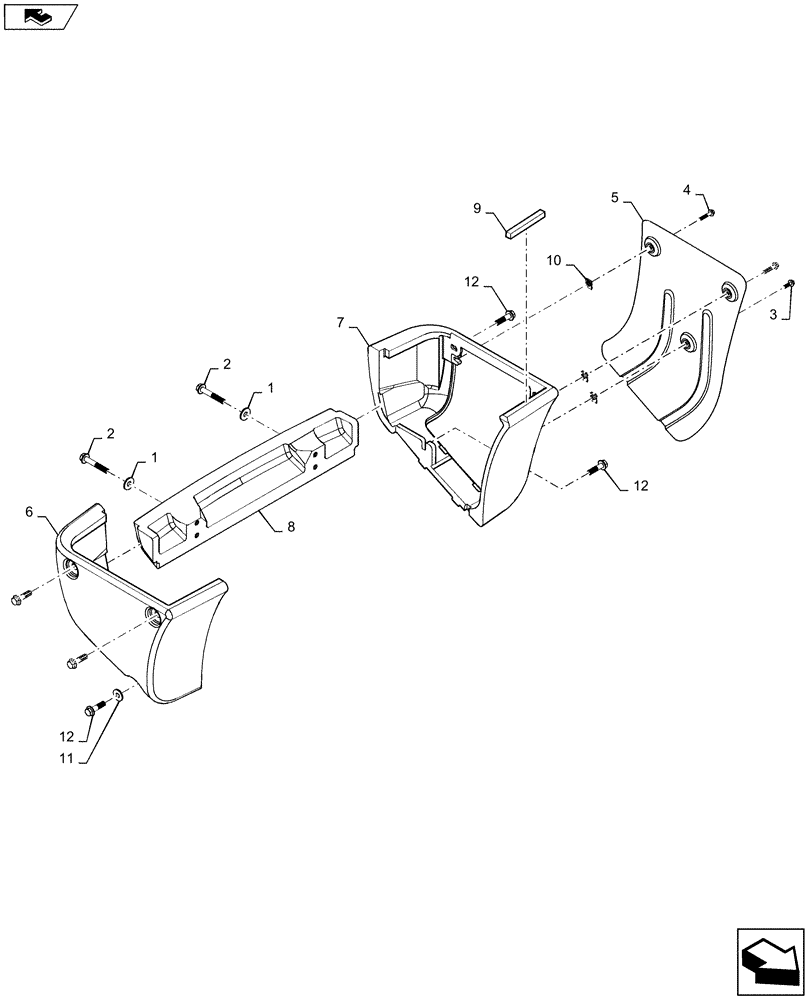

Схема запчастей Case IH SV185 - (39.140.AM) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING
home
10
1
9
4
1
2
11
3
2
12
12
6
12
8
7
5

Артикул

Название

Примечание

Количество

1

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

2

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

4

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

5

84273170

Battery Compartment

COVER PLATE

1шт.

6

84274252

Bumper, RH

BUMPER

1шт.

7

84274254

Bumper, LH

BUMPER

1шт.

8

84274279

Bumper, Rear

FRAME

1шт.

9

84355546

Counterweight

FOAM INSULATION,215mm L

1шт.

10

86625071

SPRING NUT,M10 x 1.5

3шт.

11

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20, 21.25 x 38.1 x 4.2, HTS, BORON, ZND

1шт.

12

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

6шт.

Выбрано товаров: 12
