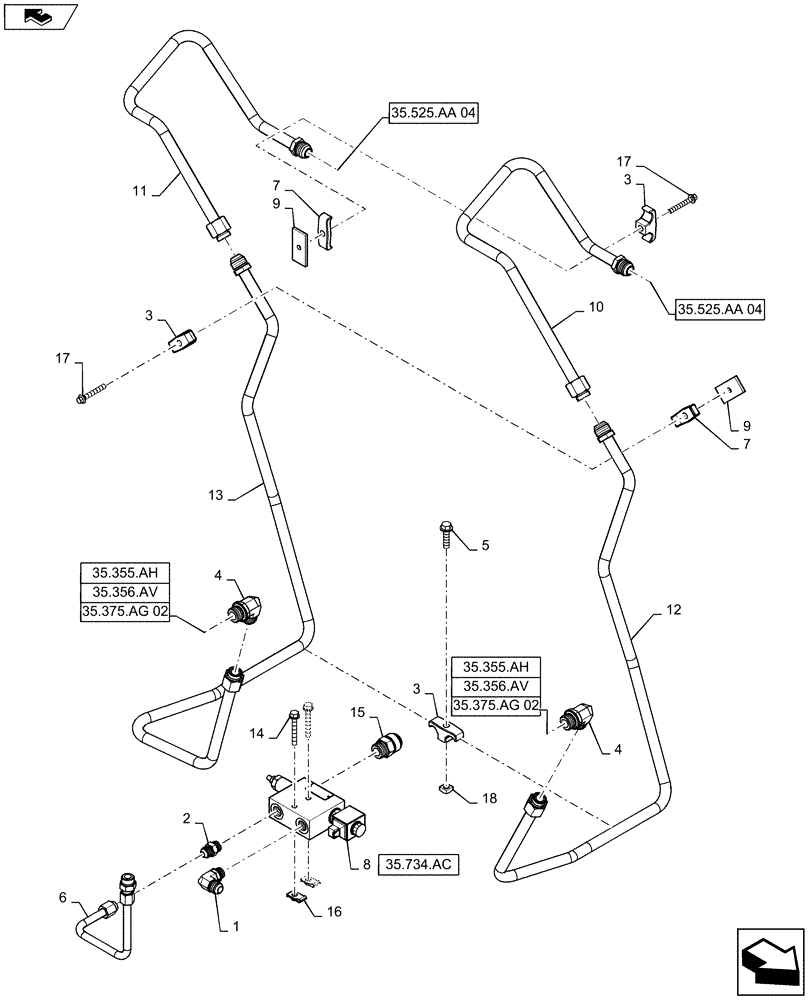

Запчасти Case IH SV185 (35.525.AA[03]) - AUXILIARY CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

3

D124301

CLAMP,3/4" ID

3шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

6

84186146

TUBE,12.7mm OD

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

8

84256405

HYDRAULIC VALVE

1шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

10

84421500

HYD TUBE,19.05mm OD

1шт.

11

84421502

HYD TUBE,19.05mm OD

1шт.

12

84377504

TUBE,19.05mm OD

1шт.

13

84377506

TUBE,19.05mm OD

1шт.

14

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

15

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

18

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.
