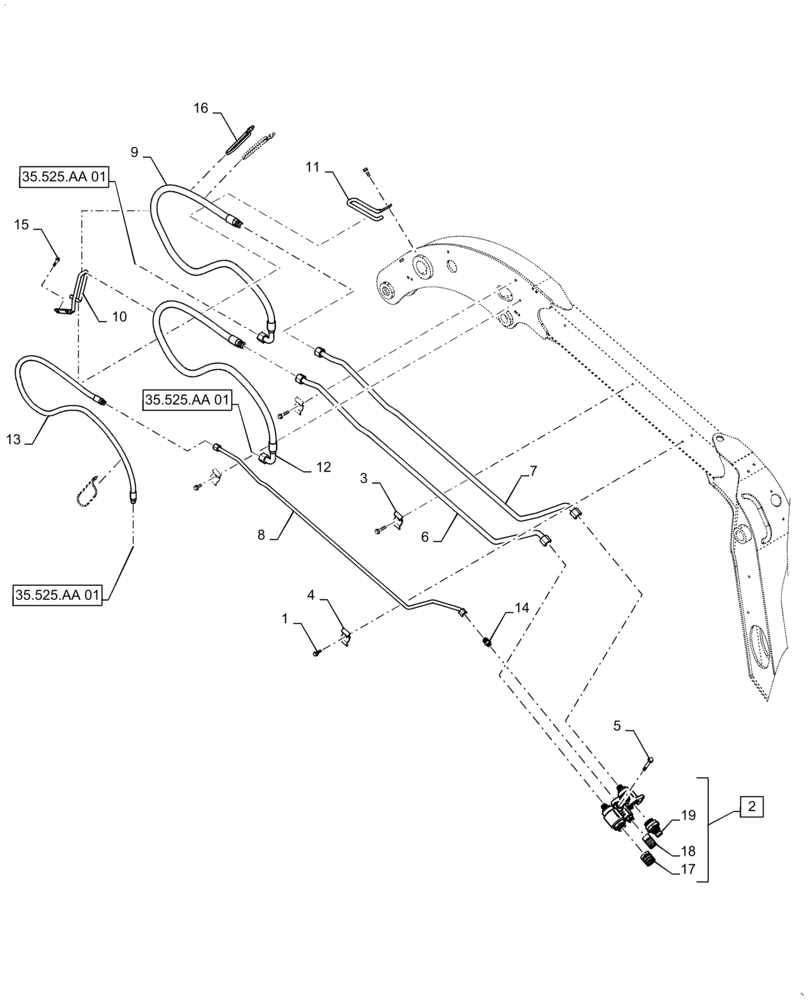

Запчасти Case IH SV185 (35.525.AA[02]) - AUXILIARY BOOM ARM PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

6шт.

2

47396759

VALVE

Incl 17 - 19

1шт.

3

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

4

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

5

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

6

84331849

A AUX Cup

RIGID TUBE

1шт.

7

84331851

A AUX Cup

RIGID TUBE

1шт.

8

84421506

Case Drain

HYD TUBE

1шт.

9

84422556

AUX

HOSE ASSY.,15.88mm ID x 1560mm L, SAE 100R17

1шт.

10

84423570

Hose, Gray

GUIDE

1шт.

11

84423574

Hose, Gray

GUIDE

1шт.

12

84468326

AUX

HOSE ASSY.,15.88mm ID x 1610mm L, SAE 100R17

1шт.

13

84468943

AUX

HOSE ASSY.,9.53mm ID x 1570mm L, SAE 100R17

1шт.

14

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

15

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

4шт.

17

84390118

3/8" Female, Years: -31-DEC-12

COUPLING

1шт.

17

47396761

COUPLING,1/2" Female

, Start Year: 01-JAN-13

1шт.

18

84390119

, Years: -31-DEC-12

COUPLING

1шт.

18

47396762

COUPLING,3/8" Female

, Start Year: 01-JAN-13

1шт.

19

84390117

1/2" Male, Years: -31-DEC-12

COUPLING

1шт.

19

47396760

COUPLING,1/2" Male

, Start Year: 01-JAN-13

1шт.
