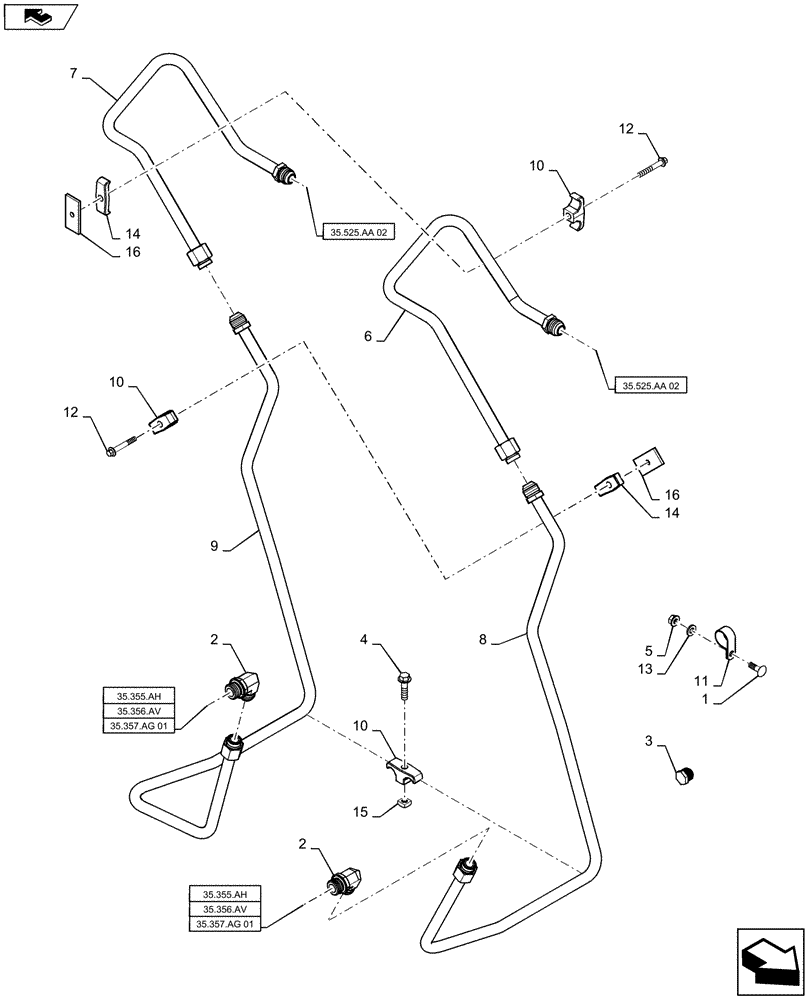

Запчасти Case IH SV185 (35.525.AA[01]) - AUXILIARY CHASSIS PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

84421500

HYD TUBE,19.05mm OD

1шт.

7

84421502

HYD TUBE,19.05mm OD

1шт.

8

84377504

TUBE,19.05mm OD

1шт.

9

84377506

TUBE,19.05mm OD

1шт.

10

D124301

CLAMP,3/4" ID

3шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

14

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

16

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.
