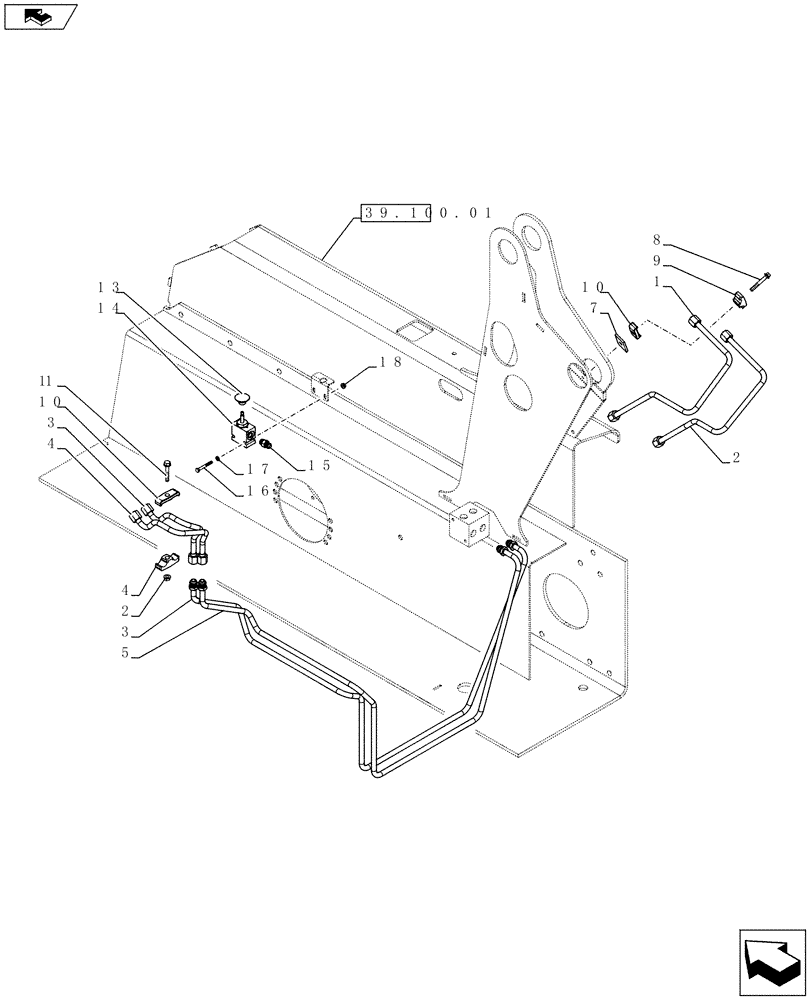

Запчасти Case IH SV185 (35.701.AX[02]) - LOADER VALVE PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84178631

Tip, RH Tower

TUBE

1шт.

2

84178633

Tip, RH Tower

TUBE

1шт.

3

84178627

Lift, Left Fender

TUBE

1шт.

4

84178629

Lower, Left Fender

TUBE

1шт.

5

84178529

Lift, Manifold to Lft Arm

TUBE

1шт.

6

84178531

Lower, Manifold to Lft Arm

TUBE

1шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar Clamp Top

2шт.

8

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

9

D120679

CLAMP,Tube, 1/2"

6шт.

10

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

5шт.

11

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

87522292

KNOB

1шт.

14

84294239

VALVE

1шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

16

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
