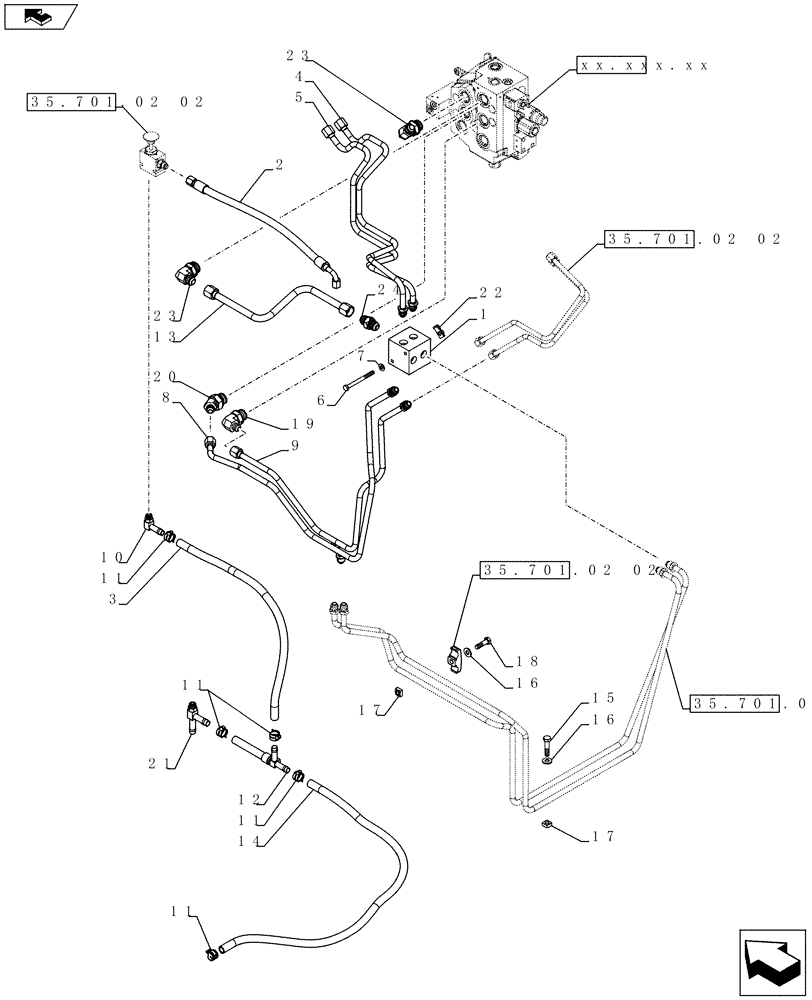

Запчасти Case IH SV185 (35.701.AX[01]) - LOADER VALVE PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84258823

HYDRAULIC MANIFOLD

1шт.

2

84201224

Override

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

3

84299733

Override to EH Aux Drain

HOSE,12.7mm ID x 660mm L

1шт.

4

84178521

Lower, Manifold to Rt Arm

TUBE

1шт.

5

84178523

Lift, Manifold to Tr Arm

TUBE

1шт.

6

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

8

84181023

Tip, Loader Valve to Rt Arm

TUBE

1шт.

9

84181026

Tip, Loader Valve to Rt Arm

TUBE

1шт.

10

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

11

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

5шт.

12

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

13

84378484

Lift, Serial Range: Valve-Manifold

RIGID TUBE

1шт.

14

84299735

EH Aux Drain to Drain Man

HOSE,12.7mm ID x 915mm L

1шт.

15

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

19

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

20

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

21

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

22

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

23

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

24

84373457

ORIFICE

1шт.
