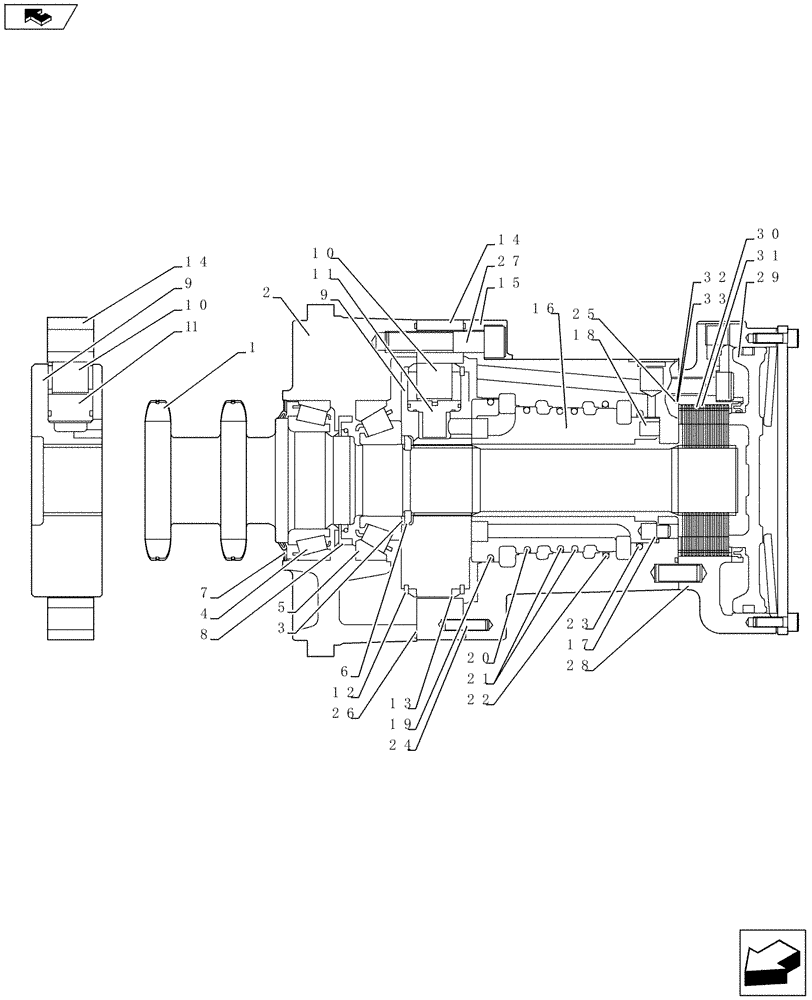

Запчасти Case IH SV185 (29.353.AD[05]) - MOTOR, REXROTH DRIVE MOTOR 2SPD (SR175,SV185) (29) - HYDROSTATIC DRIVE

1

84293367

DRIVE SHAFT

MCR3 2SPD ASM

1шт.

2

84293379

MCR3 Front W Seal

MOTOR HOUSING

1шт.

3

87043989

KIT

Abutment Washer

1шт.

4

87043990

BALL BEARING,55mm ID x 90mm OD x 23mm W

55 X 90 X 23

1шт.

5

87043991

BALL BEARING,40mm ID x 90mm OD x 25.25mm W

MCR3 40 X 90 X 25.25

1шт.

6

87043992

RING

MCR3 Split

1шт.

7

NSS

NOT SOLD SEPARAT

MCR3 Face Seal 70 X 90 X 11.2

1шт.

8

NSS

NOT SOLD SEPARAT

MCR3 Shaft Seal 50 VITON

1шт.

9

NSS

NOT SOLD SEPARAT

MCR3 Cyl Block HD/2W/P

1шт.

10

NSS

NOT SOLD SEPARAT

MCR3 Roller HD

8шт.

11

NSS

NOT SOLD SEPARAT

MCR3 Piston S/A HD/HX/2W

8шт.

12

NSS

NOT SOLD SEPARAT

CIRClip EXT 120 DIA

2шт.

13

NSS

NOT SOLD SEPARAT

MCR3 Retaining Ring

2шт.

14

84293388

CAM, MCR3 325CC 2SPD

HOUSING

1шт.

15

87043994

CASE

MCR3 R/CASE D/2W/S0455C

1шт.

16

87043995

DISTRIBUTOR

MCR3 Distributor 2WL

1шт.

17

87042911

PIN

MCR5 Stop Pin S0471

1шт.

18

87042912

SPRING

MCR3

12шт.

19

NSS

NOT SOLD SEPARAT

Piston Seal 91

1шт.

20

NSS

NOT SOLD SEPARAT

Piston Seal 82.25

1шт.

21

NSS

NOT SOLD SEPARAT

Piston Seal 81.25

2шт.

22

NSS

NOT SOLD SEPARAT

Rod Seal 80.25

1шт.

23

NSS

NOT SOLD SEPARAT

Rod Seal 70.00

1шт.

24

87043996

DOWEL

Pin DIA 6 X 25

1шт.

25

NSS

NOT SOLD SEPARAT

Sq. Ring 88.62 X 1.68 VIT

1шт.

26

NSS

NOT SOLD SEPARAT

Sq. Ring 171.5 X 1.68 VIT

2шт.

27

87043997

SCREW

SH Cap M12 X 55

6шт.

28

87043998

BRAKE

MCR3 BRK HSG 2W/S0471C

1шт.

29

87043999

PISTON

MCR3 Brake Piston S03828

1шт.

30

NSS

NOT SOLD SEPARAT

MCR3 Outer Plate

15шт.

31

NSS

NOT SOLD SEPARAT

MCR3 Inner Plate

13шт.

32

NSS

NOT SOLD SEPARAT

Shim 80 X 63 X 0.1

1шт.

33

NSS

NOT SOLD SEPARAT

Shim 80 X 63 X 0.3

1шт.

34

NSS

NOT SOLD SEPARAT

Spring Pin DIA 6 X 16

1шт.

35

NSS

NOT SOLD SEPARAT

MCR5 Spring, Shut off

1шт.
