Запчасти Case IH SV185 (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (SR175,SV185) (29) - HYDROSTATIC DRIVE

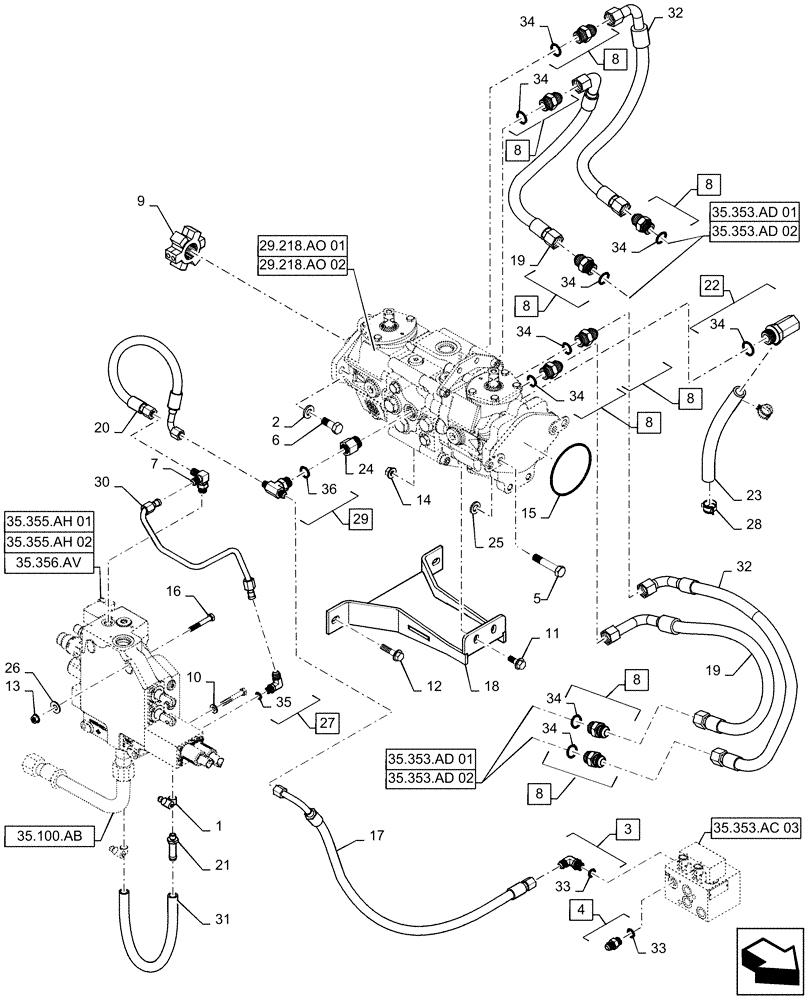

Схема запчастей Case IH SV185 - (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (SR175,SV185) (29) - HYDROSTATIC DRIVE
8
34
16
31
12
35.353.ad 01
27
35.356.av
21
19
8
34
36
8
17
6
3
2
34
34
34
8
5
28
7
30
35
8
35.100.ab
8
34
14
13
29.218.ao 02
29
8
33
19
20
15
18
34
32
1
29.218.ao 01
35.353.ad 01
25
9
34
8
35.355.ah 01
34
35.353.ad 02
24
10
35.355.ah 02
32
35.353.ac 03
35.353.ad 02
11
34
22
26
23
33
4

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 33

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 33

1шт.

5

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

2шт.

6

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

7

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 34

8шт.

9

87713745

Hub Star

CLUTCH,15T

1шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

14

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

15

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

16

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

17

84201225

Charge To Brake

HOSE ASSY.,9.53mm ID x 745mm L, SAE 100R17

1шт.

18

84254080

Pump Support

PLATE

1шт.

19

84258854

Loop

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

2шт.

20

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Interlock

1шт.

21

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

22

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 34

1шт.

23

84273648

Pump Drain

HOSE,15.88mm ID x 245mm L

1шт.

24

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

1шт.

25

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 35

1шт.

28

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

29

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 36

1шт.

30

84373389

RIGID TUBE,9.53mm OD

Aux Charge

1шт.

31

84373394

Aux Drain

HOSE,12.7mm ID x 410mm L

1шт.

32

84412421

Loop

HYDRAULIC HOSE,16mm ID x 730mm L, SAE 100R19

2шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 3, 4

2шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 8, 22

9шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 27

1шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 29

1шт.

Выбрано товаров: 36
