(25.450.AC) - POWER TRAIN (SR175,SV185)

Запчасти Case IH SV185 (25.450.AC) - POWER TRAIN (SR175,SV185) (25) - FRONT AXLE SYSTEM

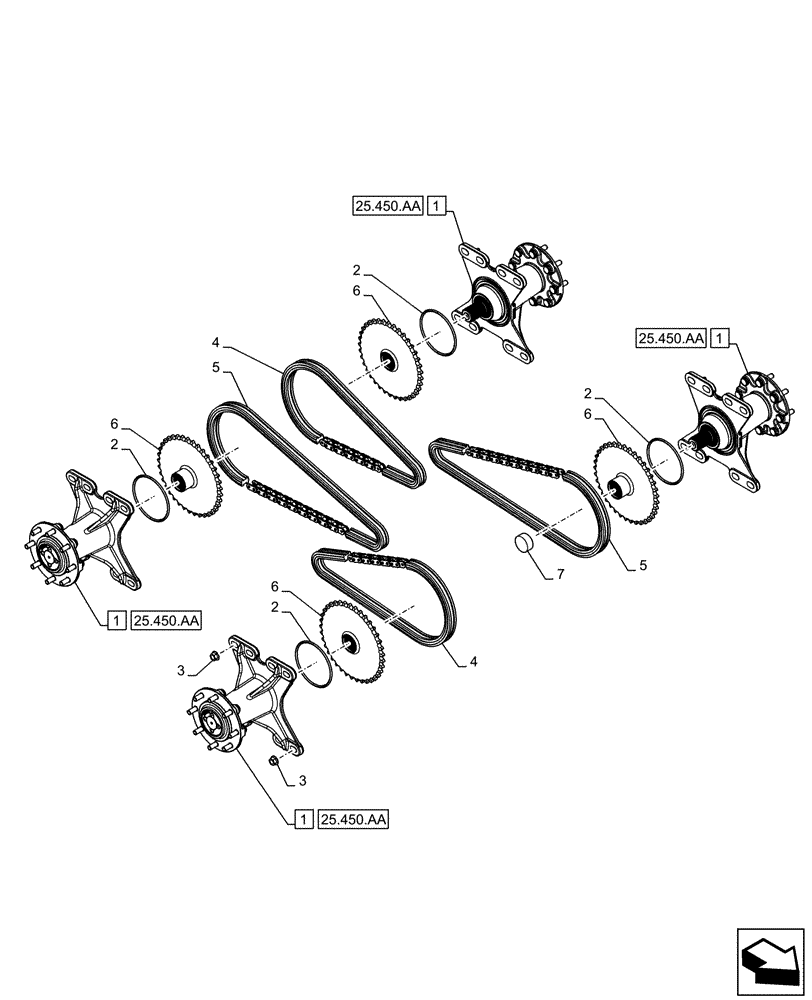

Схема запчастей Case IH SV185 - (25.450.AC) - POWER TRAIN (SR175,SV185) (25) - FRONT AXLE SYSTEM
6
1
2
6
1
25.450.aa
25.450.aa
3
6
25.450.aa
3
5
4
5
2
6
2
1
4
2
7
1
25.450.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84354270

Md., CE Gray

4WD AXLE ASSY

4шт.

2

70923606

O-RING,-439, 70 Duro, 6.475" ID x .275" Thk

4шт.

3

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

4

84200819

80/62P

CHAIN,#80, 62 Links x 25.4mm = 1574.8mm

4шт.

5

84254100

80/76P

CHAIN,#80, 76 Links x 25.4mm = 1930.4mm

4шт.

6

84254098

Driven 30 tooth 80

DRIVEN SPROCKET

4шт.

7

84298059

Nylon

BUMPER

4шт.

Выбрано товаров: 7
