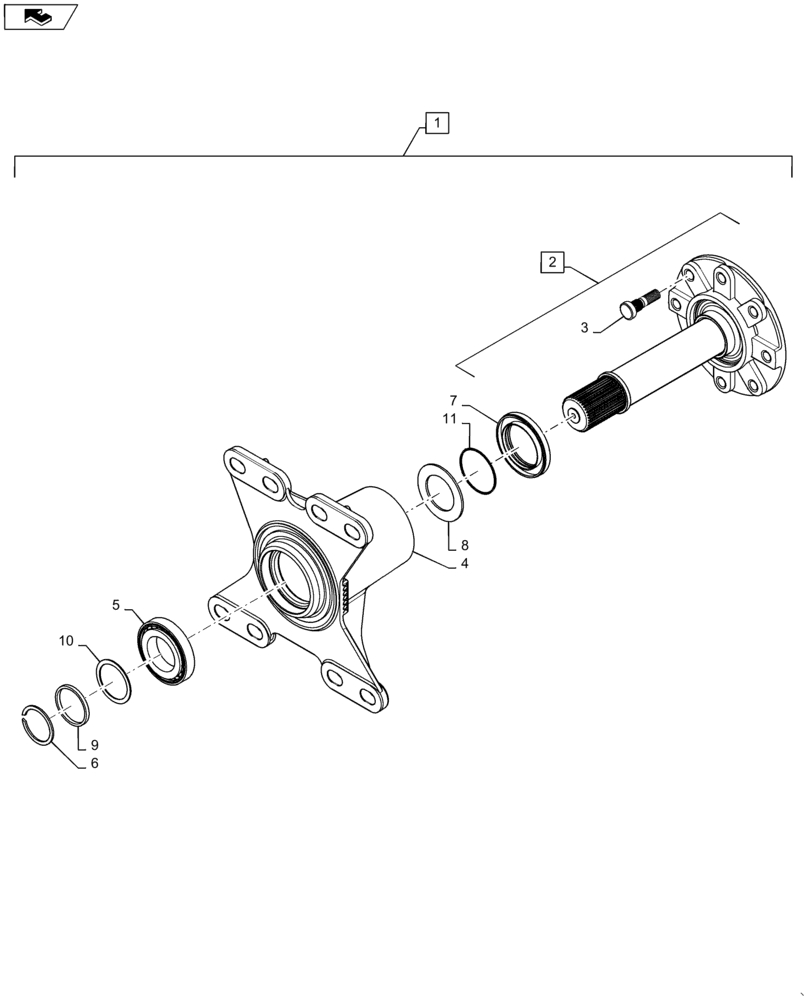

Запчасти Case IH SV185 (25.450.AA) - AXLE ASSY, STD (SR175,SV185) (25) - FRONT AXLE SYSTEM

1

84354270

Incl 2 - 11

4WD AXLE ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

Included in 1

1шт.

3

84249319

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

8шт.

4

84354273

STD, Power Tan

AXLE HOUSING

1шт.

5

84274693

TAPERED BEARING,50.8mm ID x 82.55mm OD x 21.59mm W

RLR TPR

2шт.

6

84239397

Ext. Heavy, 50.8MM Shaft

SNAP RING

1шт.

7

341837A2

SEAL,63.5mm ID x 88.9mm OD x 14mm Thk

Axle

1шт.

8

47427714

WASHER,51.8mm ID x 73.15mm OD x 3.2mm Thk

1шт.

9

84499760

SPACER,51mm ID x 59mm OD x 5.3mm L

1шт.

9

84499763

SPACER,51mm ID x 59mm OD x 5.8mm L

1шт.

9

84499766

SPACER,51mm ID x 59mm OD x 6.3mm L

1шт.

9

84499769

SPACER,51mm ID x 59mm OD x 6.8mm L

1шт.

10

84393476

SHIM,51mm ID x 64mm OD x 1.58mm Thk

1шт.

10

84393477

SHIM,64mm ID x 51mm OD x 1.68mm Thk

1шт.

10

84393478

SHIM,51mm ID x 64mm OD x 1.78mm Thk

1шт.

10

84393479

SHIM,51mm ID x 64mm OD x 1.88mm Thk

1шт.

10

84393480

SHIM,51mm ID x 64mm OD x 1.98mm Thk

1шт.

11

9849963

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.
