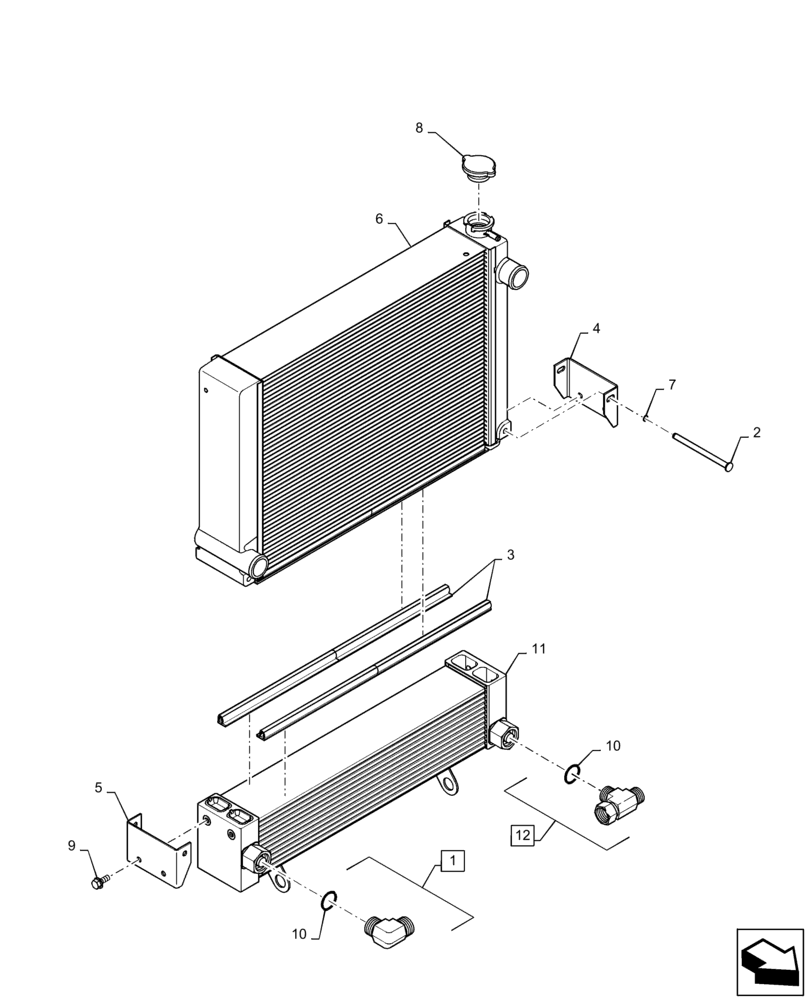

Запчасти Case IH SV185 (10.400.BE[02]) - RADIATOR & COOLER, ASSY (SR175, SV185, SR200, TR270) (10) - ENGINE

1

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 10

1шт.

2

84379138

Radiator Retainer, ATS 815875

PIN

1шт.

3

84379140

SEALING STRIP,722.6mm L

Between Radiator and Cooler, ATS 824371

2шт.

4

84379148

Mounting

CHANNEL

1шт.

5

84379149

Mounting

CHANNEL

1шт.

6

84379153

Standard Fin Density, With Decals

RADIATOR

1шт.

6

84475176

With Decals, Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

RADIATOR

1шт.

7

87687374

CLIP

Radiator Retaining, ATS 812837

1шт.

8

87687375

RADIATOR CAP

16 psi, ATS 816525

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

84475178

Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

OIL COOLER

1шт.

11

84379132

ATS 22547

OIL COOLER,Standard Fin Density

1шт.

12

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

Incl 10

1шт.
