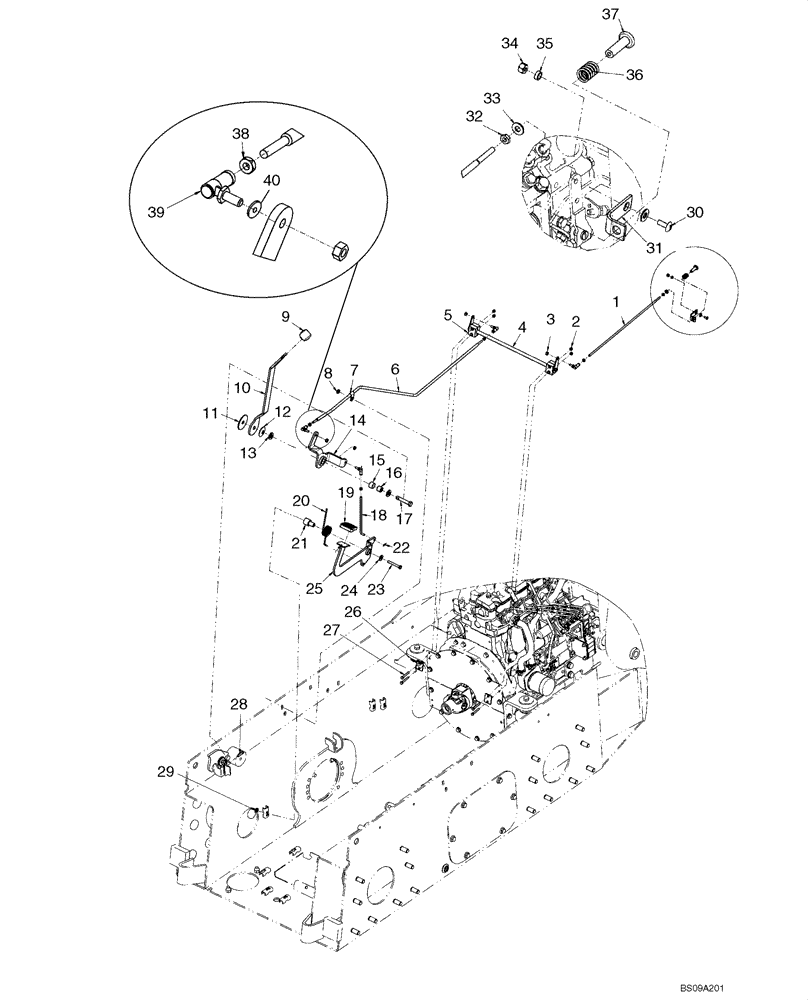

Запчасти Case IH SV185 (10.220.01[02]) - CONTROLS - FOOT AND HAND THROTTLE (10) - ENGINE

1

87460722

ROD

Throttle Rod

1шт.

2

87030561

NUT,M6 x 1, Cl 8

4шт.

3

86509309

NUT,1/4"-28, G5

4шт.

4

87435735

CRANK

1шт.

5

87435732

CLAMP

2шт.

6

87688637

ROD

Throttle Rod

1шт.

7

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

9

A177436

KNOB

1шт.

10

87712373

THROTTLE CONTROL

Throttle Handle

1шт.

11

1342374C1

DISC

1шт.

12

R14771

WASHER

1шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

14

87712376

THROTTLE CONTROL

Throttle Control

1шт.

15

186905A1

BUSHING

1шт.

16

187035A2

SLEEVE

1шт.

17

87612749

BOLT,Hex, M12 x 60mm, Cl 10.9

1шт.

18

87650094

ROD

Foot Throttle Rod

1шт.

19

323657A1

PAD

1шт.

20

87416539

TORSION SPRING

1шт.

21

87424095

SLEEVE

Throttle Pivot

1шт.

22

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

23

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

24

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

25

87725977

PEDAL

Foot Pedal; Replaces 87650090

1шт.

26

87435739

BAR

2шт.

27

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

28

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

29

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

30

84821

SCREW,Truss HD, #10 - 24 x 1/2"

1шт.

31

9844532

BRACKET

1шт.

32

87825

NUT,#10-32

1шт.

33

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

34

88826

LOCK NUT,#10-24, GA

1шт.

35

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

1шт.

36

11104

SPRING

1шт.

37

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

1шт.

38

86976064

JAM NUT,Jam, 1/4"-28, G5

4шт.

39

H169920

BALL JOINT

4шт.

40

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
