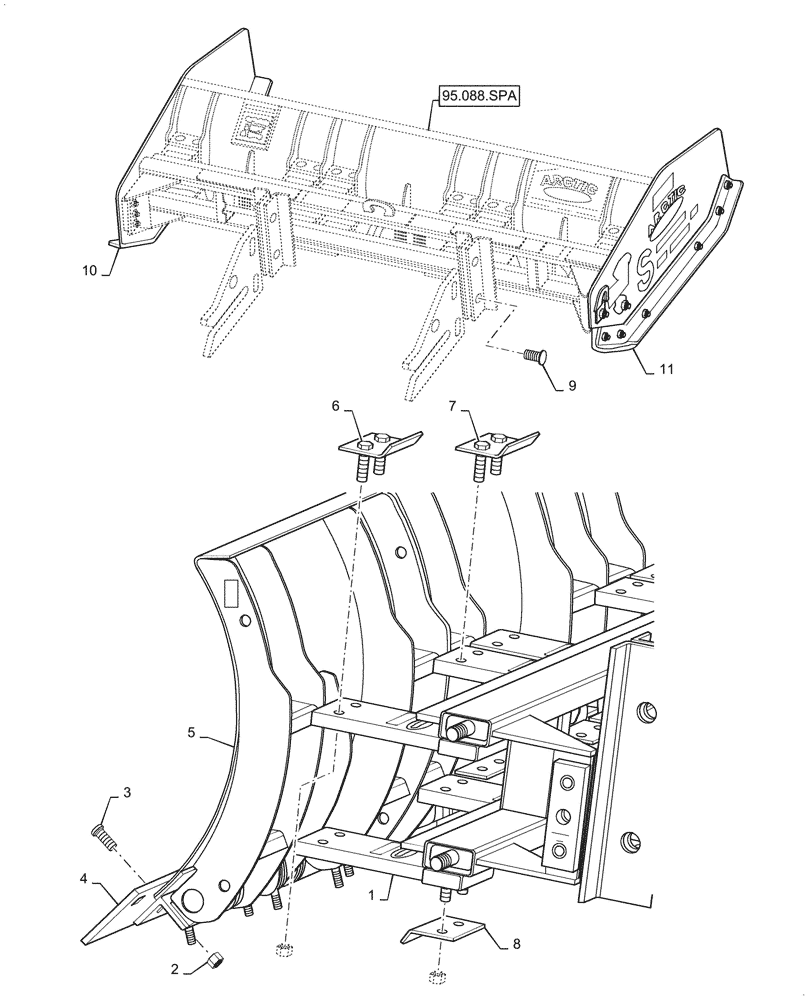

Запчасти Case IH SV185 (95.088.SPA[02]) - SNOW PUSHER ATTACHMENT, SIDE PANEL & MOLDBOARD ATTACHING HARDWARE (95) - CE ATTACHMENTS

1

48031663

Poly

BLOCK

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Included in Upper Assembly

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Included in Upper Assembly

1шт.

4

48031668

30"

CUTTING EDGE

1шт.

5

NSS

NOT SOLD SEPARAT

Plow, Included in Upper Assembly

1шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Included in Upper Assembly

1шт.

7

NSS

NOT SOLD SEPARAT

Center Bracket, Included in Upper Assembly

1шт.

8

NSS

NOT SOLD SEPARAT

Lower Bracket, Included in Upper Assembly

1шт.

9

48031673

Mounting

PIN

1шт.

10

48031682

LH

SHOE

1шт.

11

48031680

RH

SHOE

1шт.
