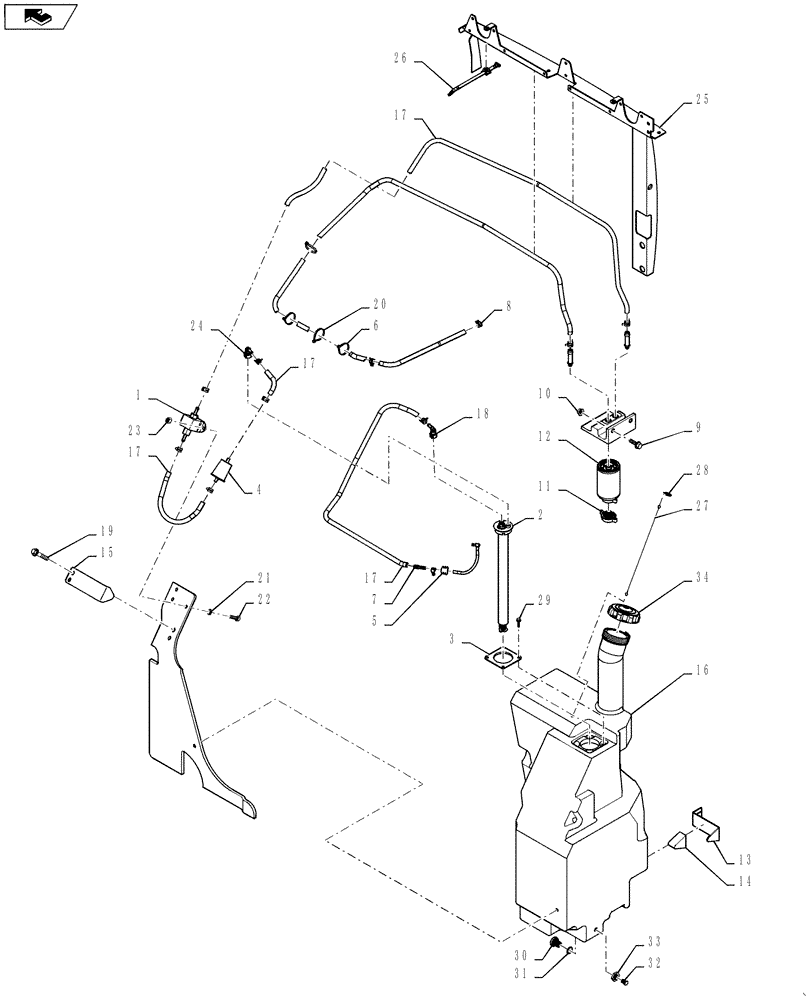

1
84130988
FUEL PUMP,12V, 1.4A
Electric Lift
1шт.
2
84268571
Fuel
SENDER UNIT
1шт.
3
84338049
MOUNTING PLATE
Sender Retaining
1шт.
4
9611973
FUEL FILTER
1шт.
5
291260
HOSE,5/32" ID
.6ft, Fuel Line
1шт.
6
574518
HOSE CLAMP,6.3mm - 15.7mm, SAE # 4
2шт.
7
84298470
Fuel Fitting
ADAPTER
1шт.
8
87436932
CLAMP,13.9mm - 15.5mm, Spring
CTB
10шт.
9
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
2шт.
10
86619800
FLANGE NUT,M6 x 1, Cl 8
2шт.
11
9844342
FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring
Assembly, Incl. 11A
1шт.
12
84299976
FILTER ASSY
Assembly, Incl 11A
2шт.
11a
84299977
ELEMENT
Fuel Filter
1шт.
13
87054825
SUPPORT
Tank
1шт.
14
84373790
Pad
FOAM
2шт.
15
280476
SELF-TAP SCREW,HWH, 3/8"-16 x 1"
4шт.
16
84239312
Fuel Tank
FUEL TANK
1шт.
17
290323
HOSE,5/16" ID x 500 FT L, SAE 30R7
1шт.
18
84350218
FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss
Fitting, 3/8
1шт.
19
84273624
Fuel Tank
BRACKET
1шт.
20
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP Nylon Tie, 7-8in
4шт.
21
120100
BOLT,M6 x 20mm, Cl 8.8
2шт.
22
87655041
SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk
M6, 6.85 X 12.75 X 1.8
2шт.
23
9804276
FLANGE NUT,Hex, M6 x 1, Cl 8
2шт.
24
84350217
FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss
Fitting, 5/16
1шт.
25
NSS
NOT SOLD SEPARAT
Edge Channel, 85.3mm
1шт.
26
84259663
CABLE TIE,228.6mm L, Nylon, Black
Tie
4шт.
27
84370069
Fuel Cap
CHAIN
1шт.
28
84367737
LOCK WASHER,22.6mm OD x 1.27mm Thk
Fuel Cap, Locking
1шт.
29
9804257
FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd
4шт.
30
9576801
PLUG,1/4" - 18 NPT
Hex 1/4-18
1шт.
31
238-5210
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
1шт.
32
87694594
BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal
Fitting, Fuel Tank Drain
1шт.
33
1251791C1
JAM NUT,3/4" - 16 LH Thread
Fitting, Fuel Tank Drain
1шт.
34
48088756
W/Check Valve
FILLER CAP
1шт.
