Запчасти Case IH SV185 (90.154.AA[03]) - DEMO DOOR, JAMB (23-SEP-2013 & PRIOR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

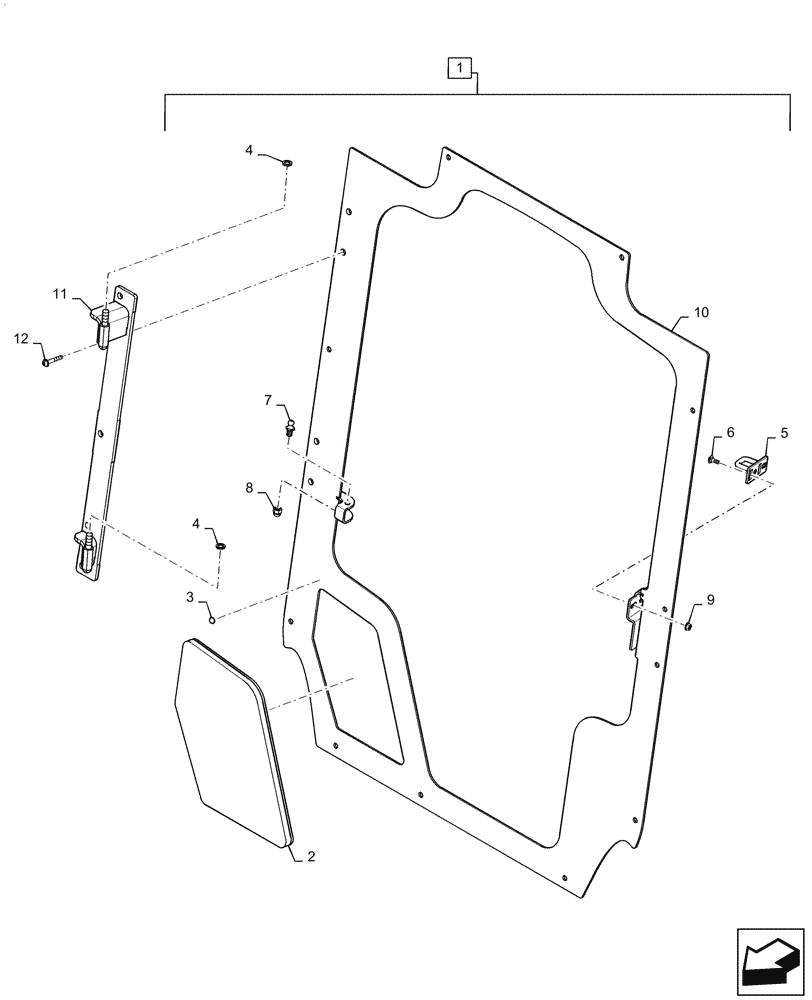

Схема запчастей Case IH SV185 - (90.154.AA[03]) - DEMO DOOR, JAMB (23-SEP-2013 & PRIOR) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
1
12
11
8
4
2
7
3
9
6
10

Артикул

Название

Примечание

Количество

1

84323416

Jamb Assembly, Demo Door, Incl 2 - 10

DOOR

1шт.

Jamb Assembly Includes Welded on Hinges, to Replace Hinges See Ref 11, 12

1шт.

2

84323417

WINDOW

Lower, Door

1шт.

3

84297717

BUMPER

Rubber

4шт.

4

87599753

SPACER,10.21mm ID x 15.88mm OD x 2.03mm L

2шт.

5

84350456

STRIKER PLATE

Door

1шт.

6

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

7

87581669

BALL STUD,M8 x 29.50mm L

1шт.

8

412326

CROWN NUT,Dome, M8 x 1.25mm, Cl 6

1шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

10

84485879

Door Jam, Demo Door

FRAME

1шт.

Single Hinges are Welded on and are NSS, to Replace See Ref 11, 12

1шт.

11

48058095

Plate

HINGE

1шт.

12

84359102

SCREW,Round HD, M6 x 35mm, Cl 10.9

4шт.

Screws Thread into Welded Nuts on Frame, Nuts are NSS

1шт.

Выбрано товаров: 15
