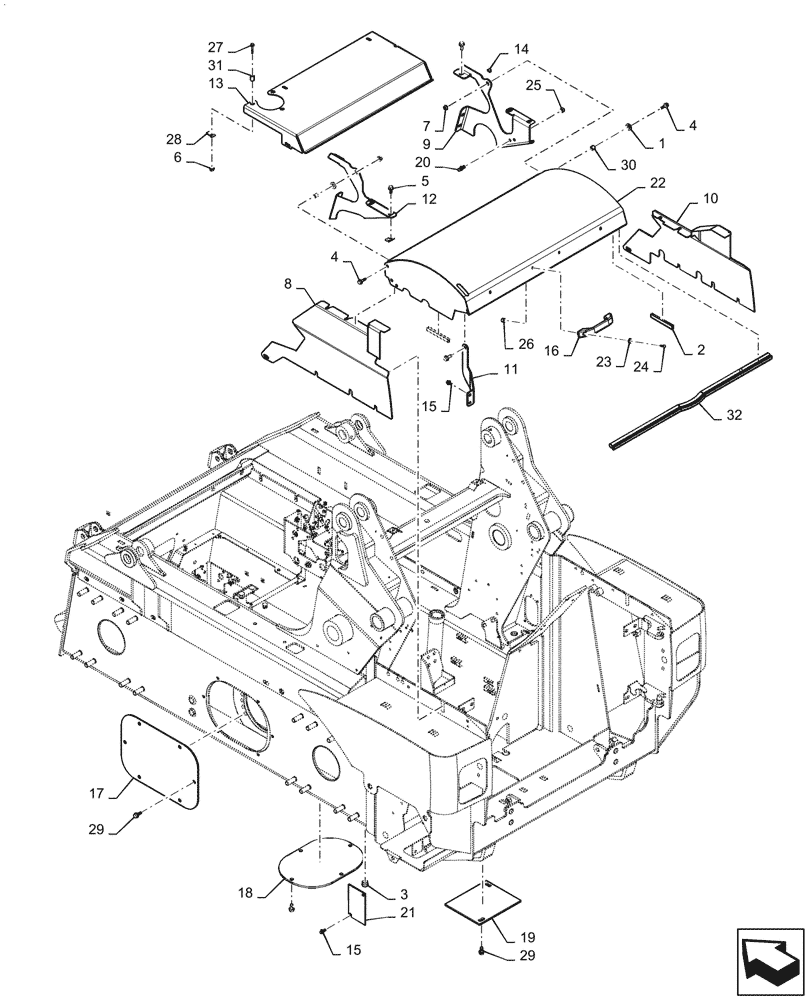

Запчасти Case IH SV185 (90.100.AU) - HOODS AND COVERS (SV185) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

2

291186

PROTECTION STRIP,9.9mm W

1шт.

3

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

6шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47362820

PANEL

LH Cover

1шт.

9

47417191

Hood Support, RH

BRACKET

1шт.

10

47419780

Cover RH

SIDE PANEL

1шт.

11

47498985

ANGLE

Hood Lock Tab

1шт.

12

47521967

Cover Mounting

MOUNT

1шт.

13

47551543

Rear Deck

ANGLE

1шт.

14

47591940

Rubber

BUMPER

2шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

8шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

406256A1

HANDLE

Rear Hood

1шт.

17

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

18

84299800

COVER PLATE

1шт.

19

84299809

Plumbing Access

COVER PLATE

1шт.

20

189609A1

BALL STUD,M8 x 1.25

2шт.

21

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

22

84423420

Tilt, Gray

HOOD

1шт.

23

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

24

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

26

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

27

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

2шт.

28

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

7шт.

29

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

30шт.

30

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

31

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

2шт.

32

47764946

Bulb, 877mm

SEALING STRIP,877mm L

1шт.
